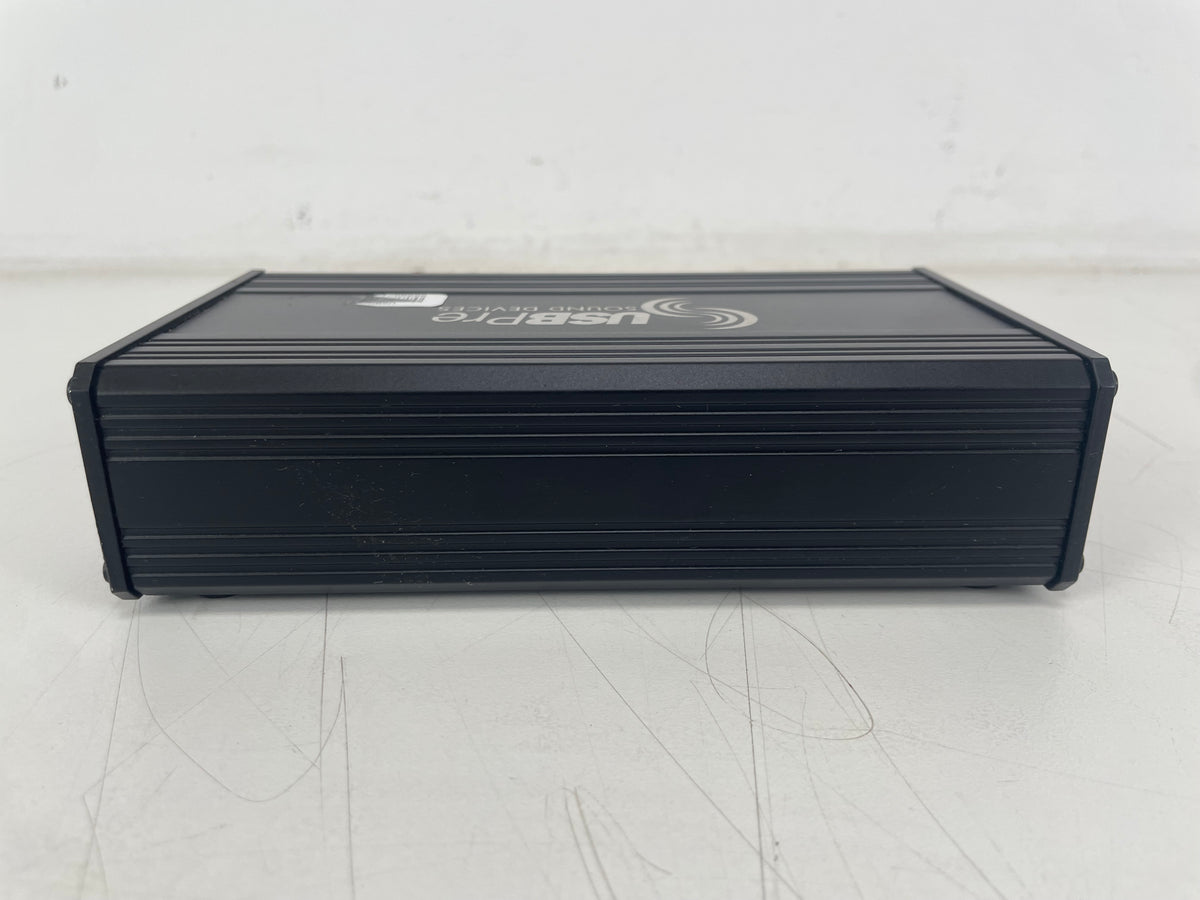

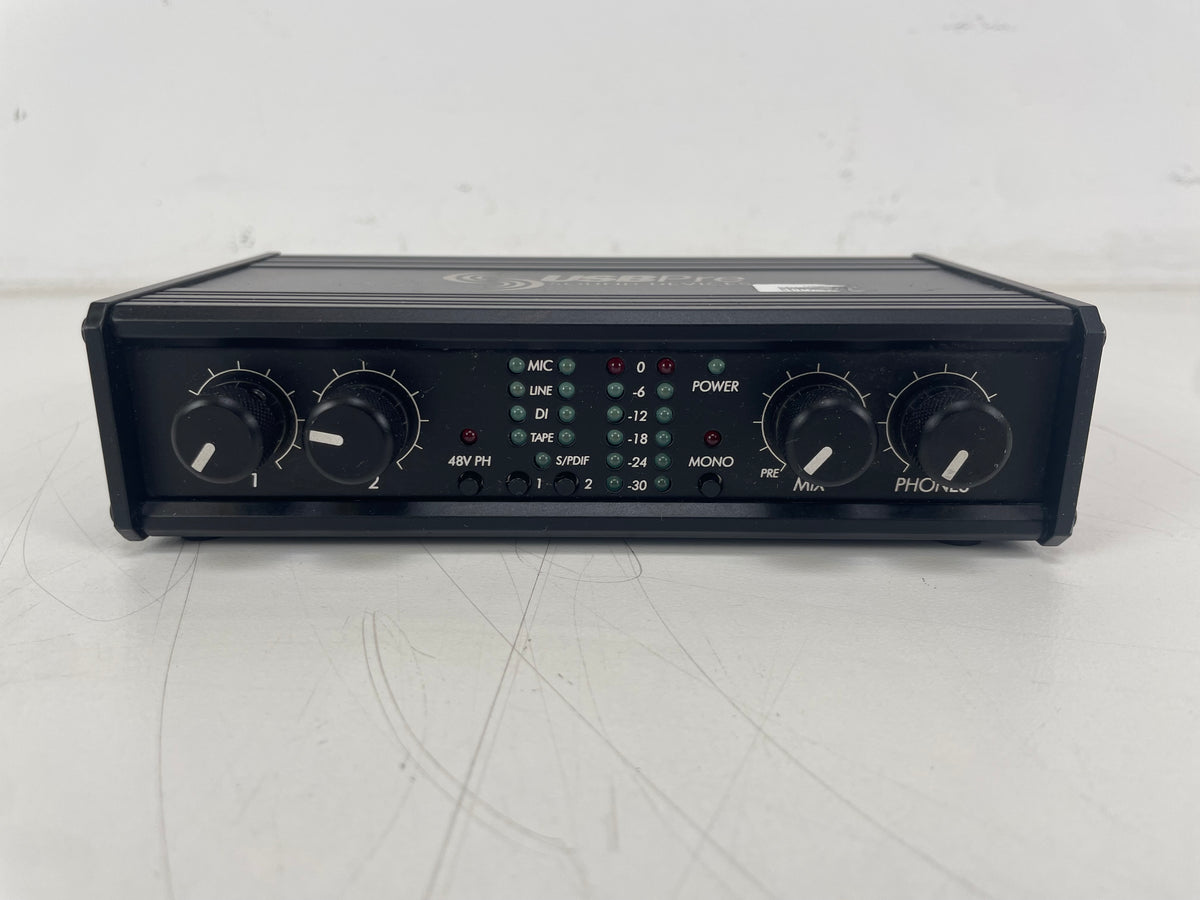

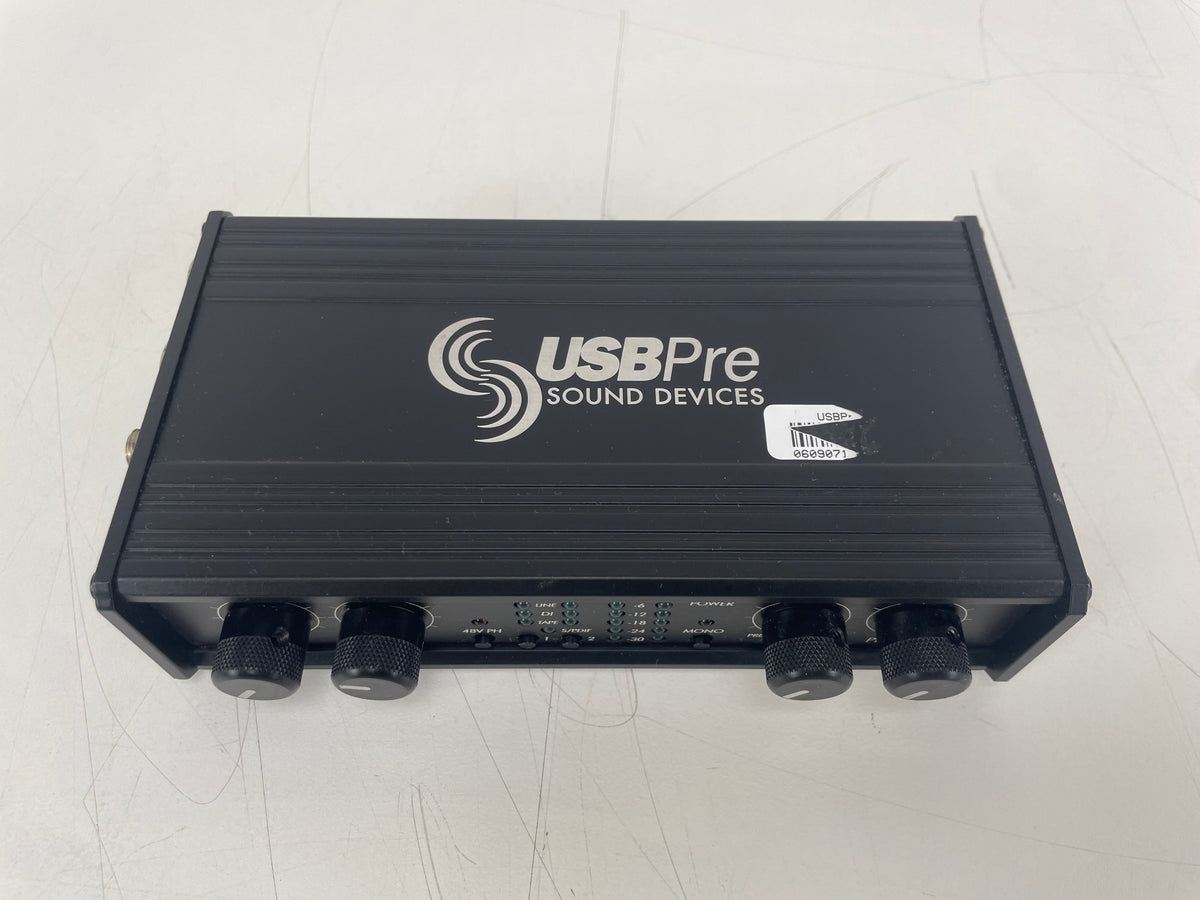

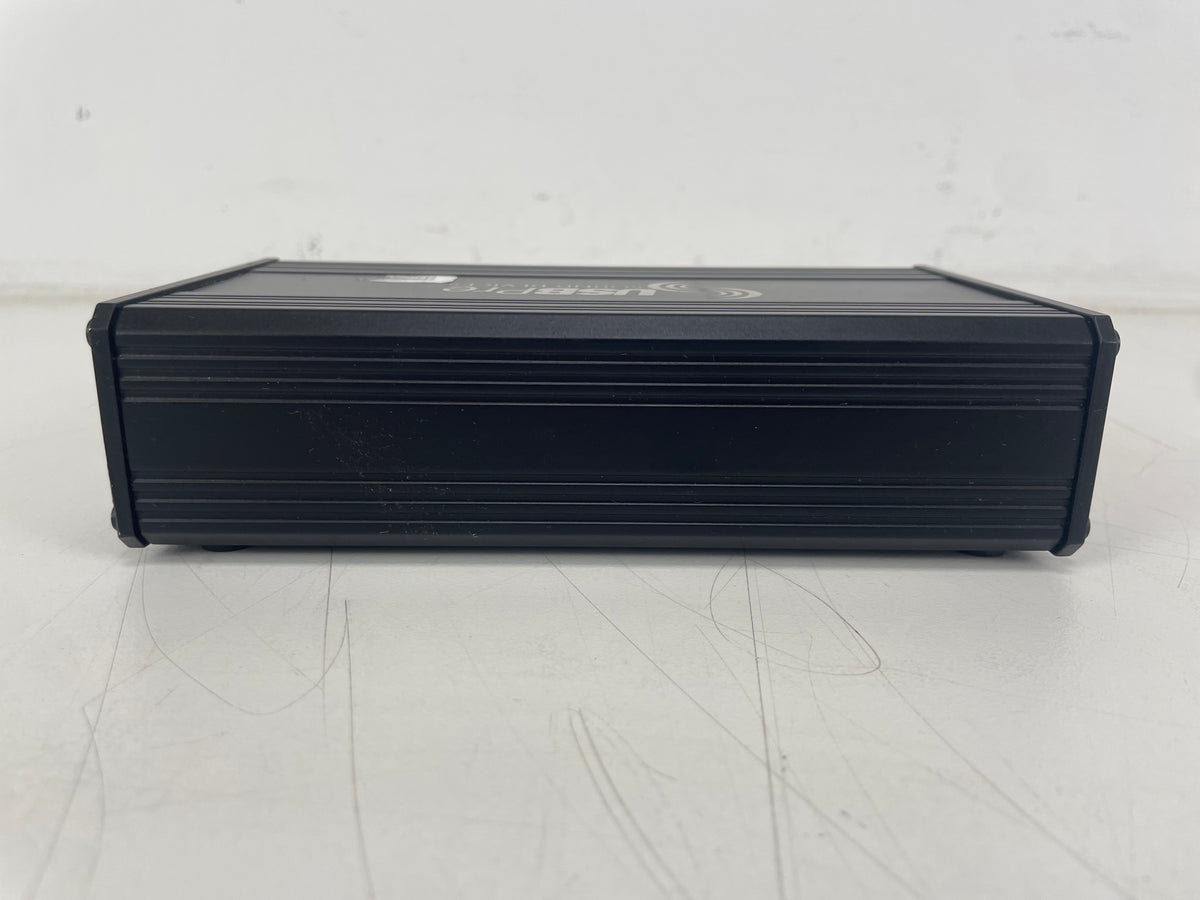

For sale: Professional Sound Devices USBPre two-channel computer audio interface, designed for high-quality audio recording and playback with a computer.
The USBPre was aimed at professional location recording, broadcast and studio applications, combining a compact portable format with Sound Devices’ professional audio engineering.
This example is in good used cosmetic condition but has not been tested, so it is offered as an untested unit.
''Please ask us for a shipping quote for the best shipping rates. Shown costs might be incorrect, or we can offer better services''
Cosmetic condition:
- Good overall used condition
- Light signs of normal previous use may be present
- No major cosmetic damage reported
- Controls and connections appear physically intact
- Please see the photos for the exact cosmetic condition
Functional Status:
⚠️ Untested
The interface has not been functionally tested. Because its operating condition has not been verified, no guarantee can be given regarding inputs, outputs, USB communication or other functions.
Specs:
| Specification |
Details |
| Type |
Two-channel USB audio interface with microphone preamps |
| Computer connection |
USB 1.1, USB Type-B connector |
| Recording resolution |
8, 16 or 24-bit |
| Recording sample rates |
32, 44.1 and 48 kHz |
| Playback resolution |
8 or 16-bit; 24-bit sources played back at 16-bit |
| Playback sample rates |
5–55 kHz |
| A/D converter |
24-bit |
| D/A converter |
16-bit |
| A/D dynamic range |
≥104 dB in 24-bit mode; ≥96 dB in 16-bit mode, A-weighted |
| D/A dynamic range |
≥90 dB, A-weighted |
| Frequency response — recording |
10 Hz–20 kHz, ±0.5 dB |
| Frequency response — line output |
10 Hz–20 kHz, ±1.0 dB |
| THD+N — recording |
≤0.05% at minimum gain, input driven to −6 dBFS |
| THD+N — line output |
≤0.009% at 0 dBFS into 100 kΩ |
| Microphone equivalent input noise |
−124 dBu (150 Ω source, gain ≥50%, pad off) |

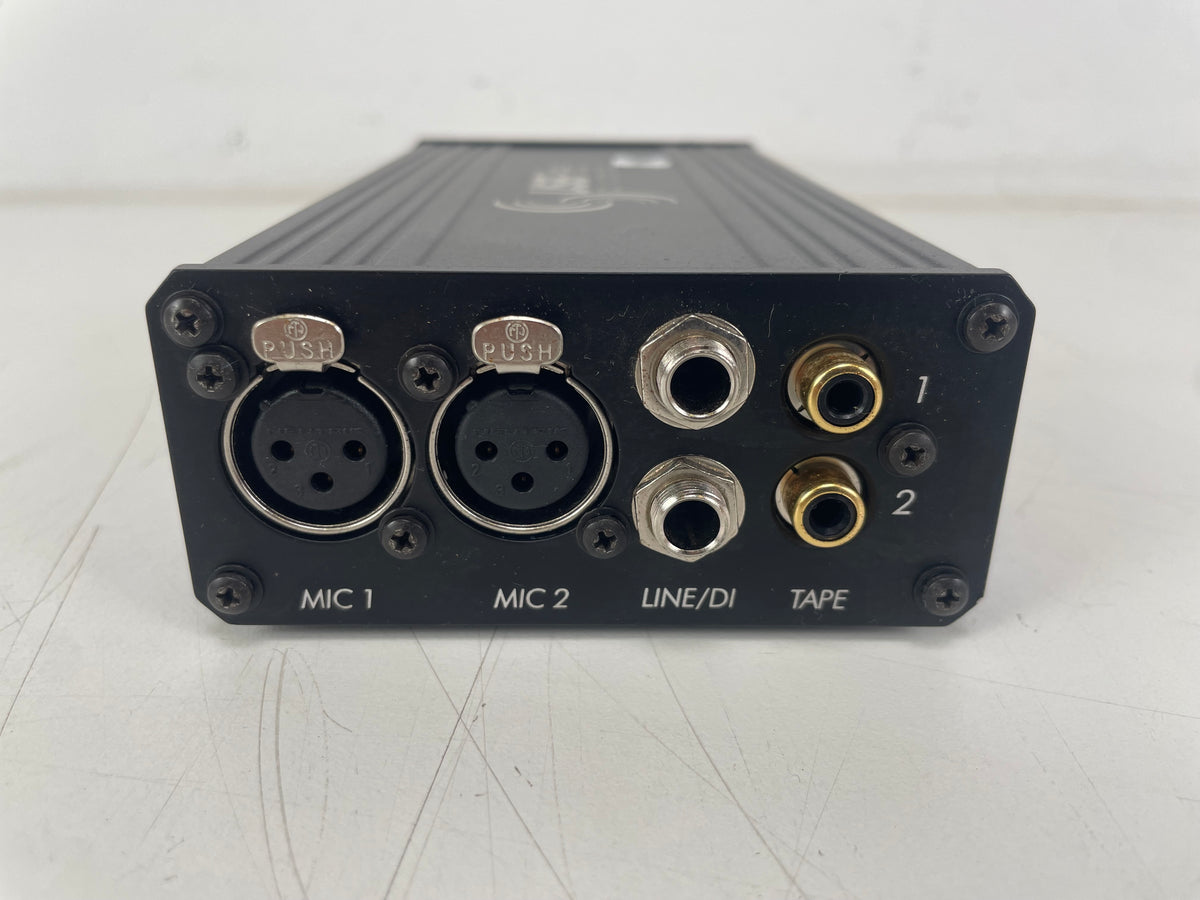

| Microphone inputs |
2 × balanced XLR |
| Line/instrument inputs |
2 × switchable balanced line / unbalanced high-impedance DI |
| Tape inputs |
Stereo RCA, unbalanced |
| Microphone input impedance |
2 kΩ |
| Line input impedance |
65 kΩ |
| Instrument input impedance |
10 MΩ |
| Tape input impedance |
110 kΩ |
| Microphone input pad |
15 dB, individually switchable per channel |
| Phantom power |
48 V, up to 10 mA per microphone input |

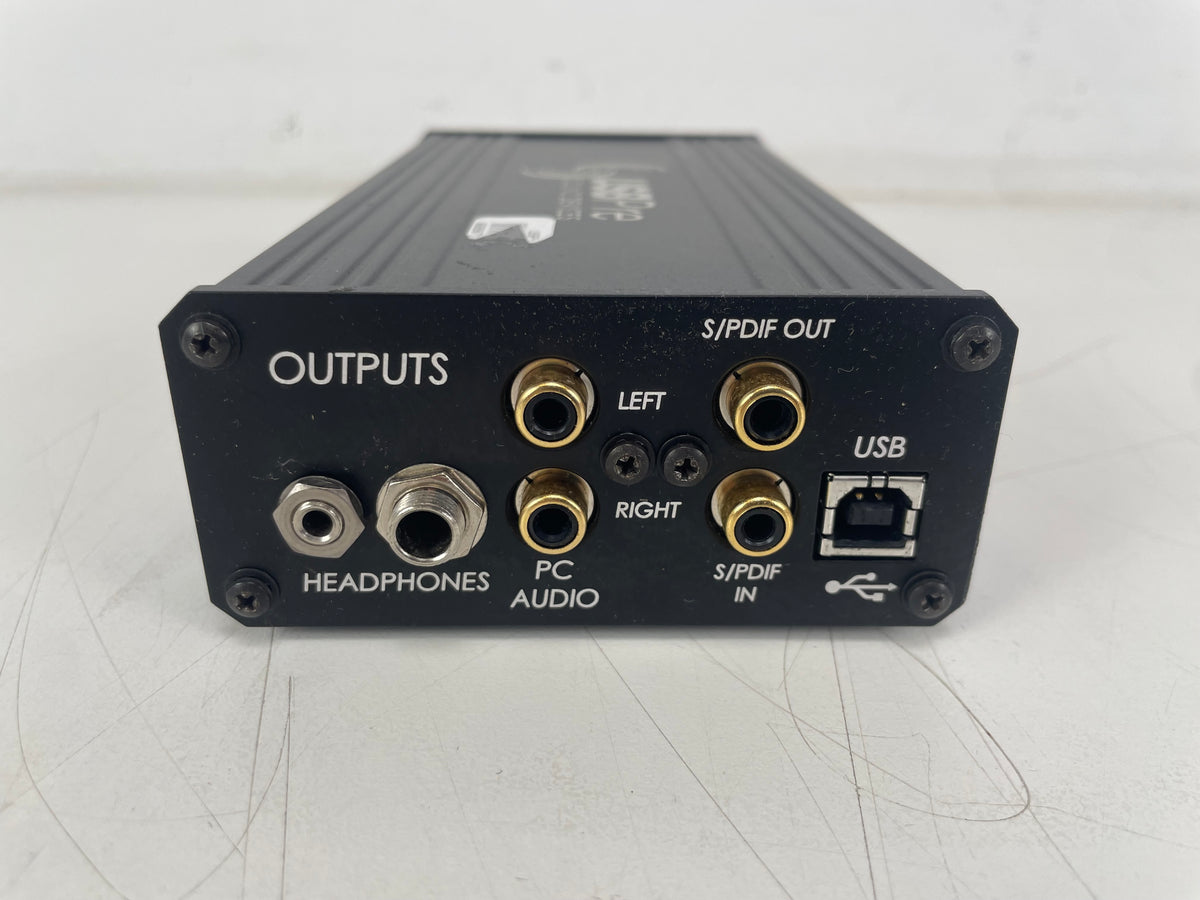

| Analog line output |
Stereo RCA, computer playback signal |
| Maximum line output |
+8 dBu / 2.0 V RMS into 100 kΩ, at 1% THD |
| Headphone outputs |
6.35 mm and 3.5 mm stereo TRS |
| Maximum headphone output |
+11 dBu / 2.75 V RMS into 600 Ω, at 1% THD |
| Output impedance |
Line: 3.3 kΩ; headphones: 20 Ω |
| Digital connections |
Coaxial S/PDIF input and output* |
| S/PDIF resolution |
Up to 24-bit input; up to 20-bit hardware output, depending on driver/OS |
| Monitoring |
Zero-delay analog input monitoring with input/computer playback mix control |
| Level meters |
Six-segment LED peak meters, 30 dB range |
| Power supply |
USB bus powered, 5 V DC, maximum 500 mA |
| Construction |
Extruded aluminium chassis with aluminium knobs |
Dimensions (LxWxH): 18 × 10 × 4,3 cm
Weight: 2 Kg
