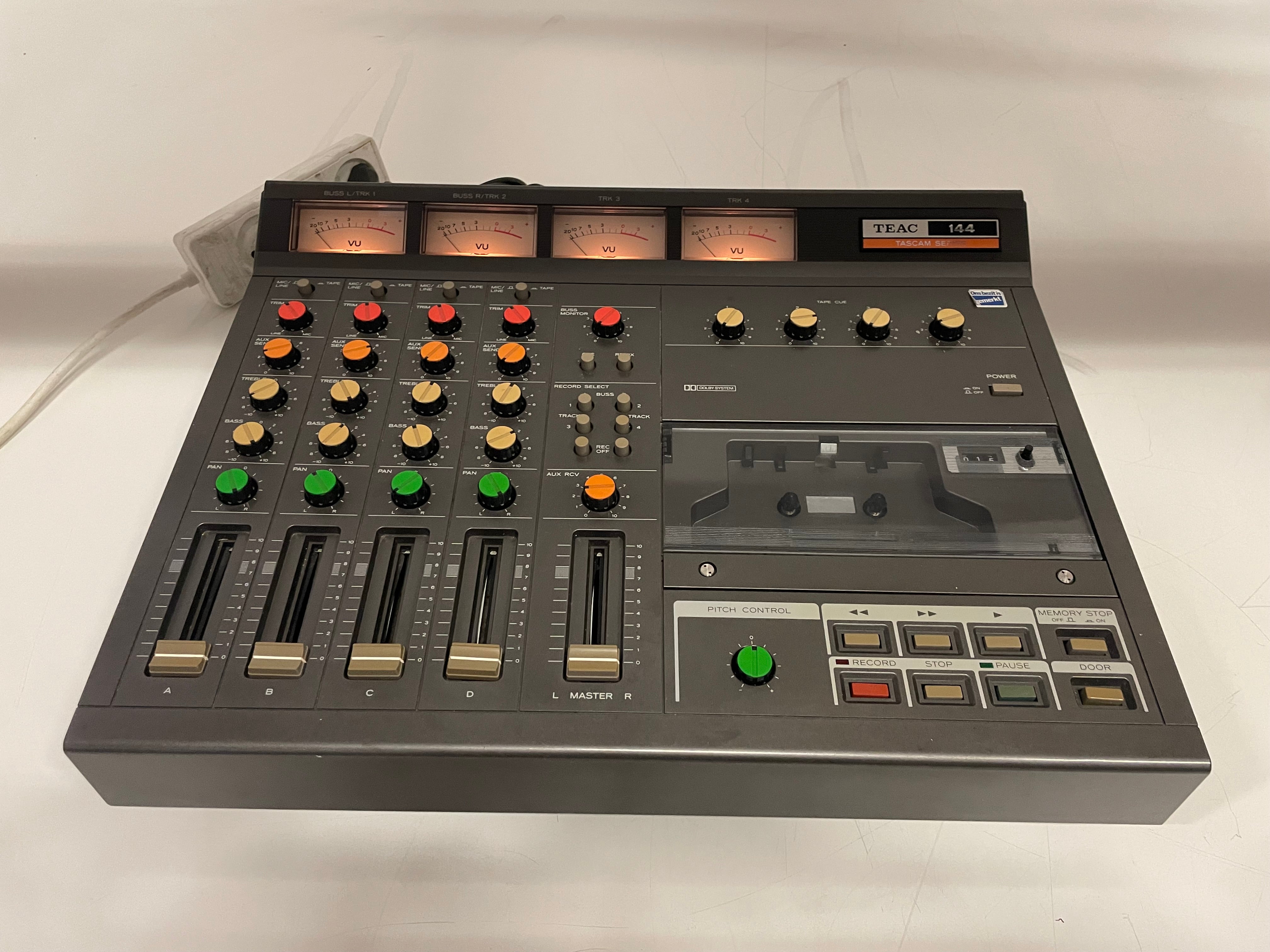

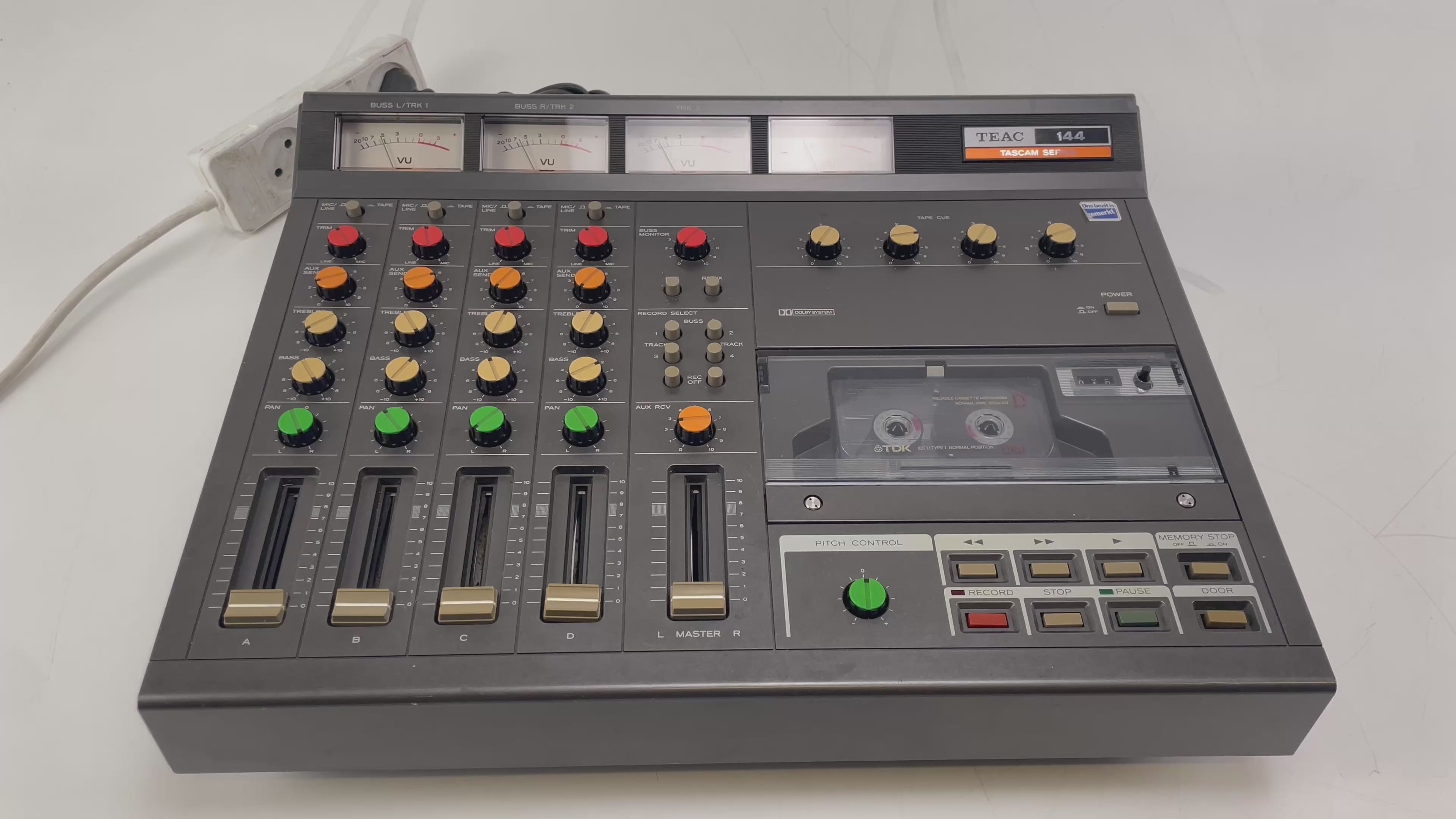

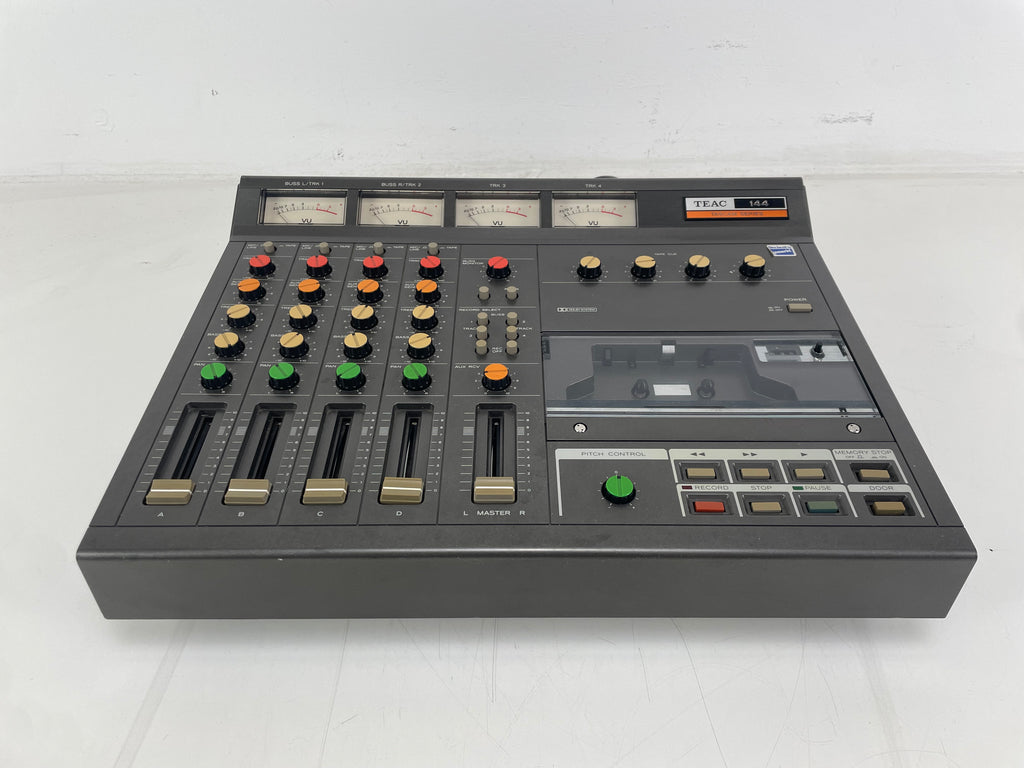

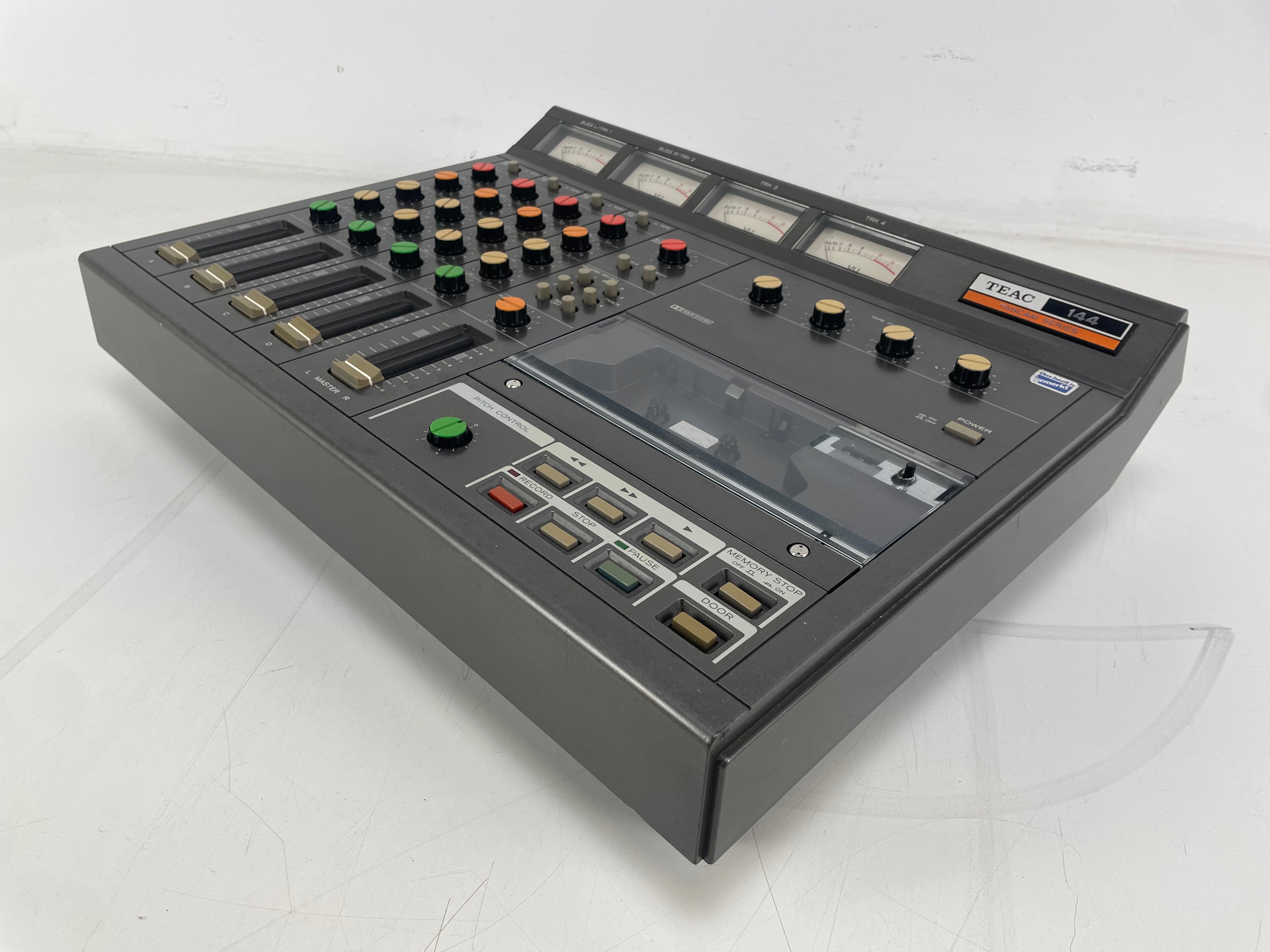

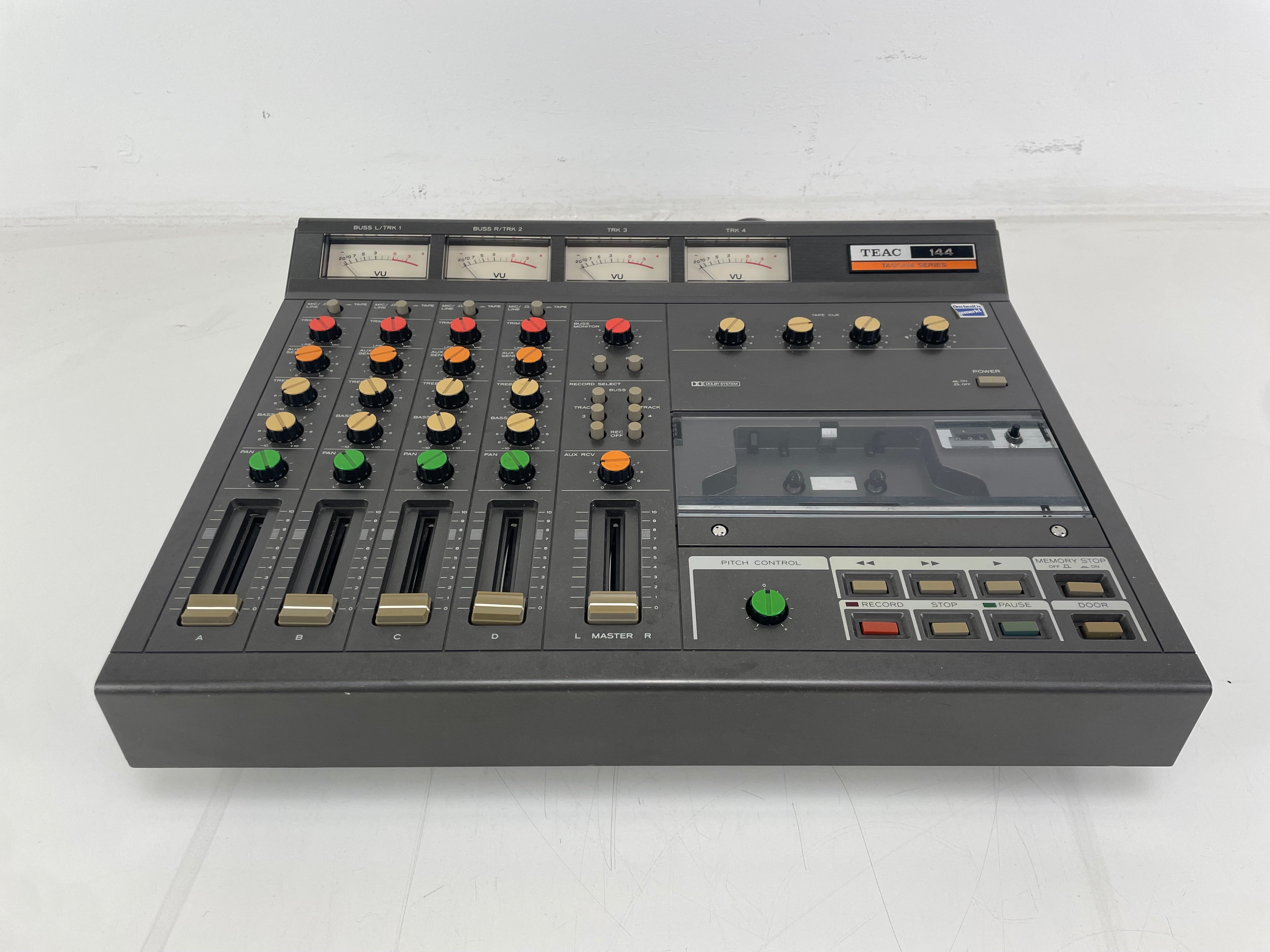

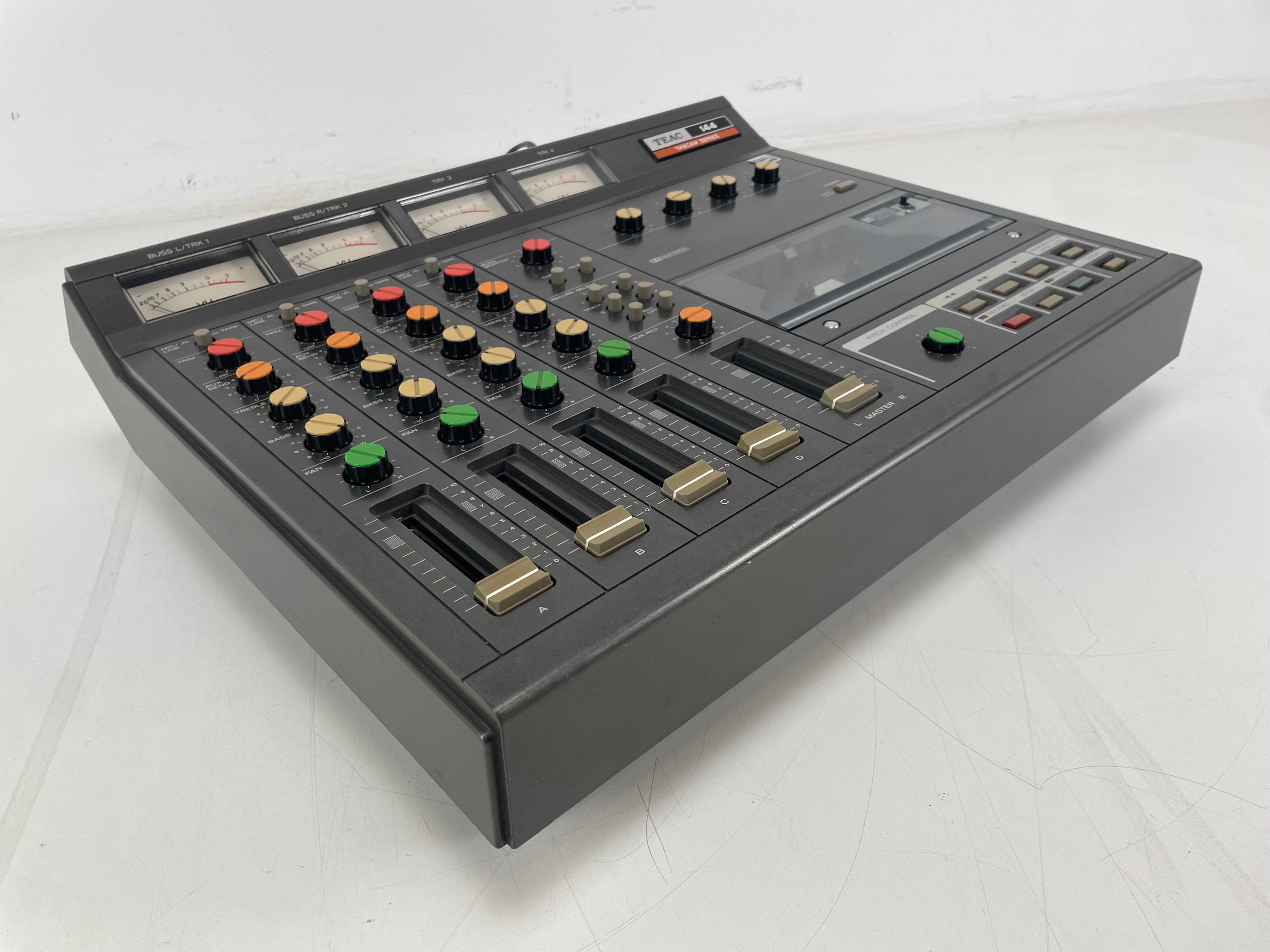

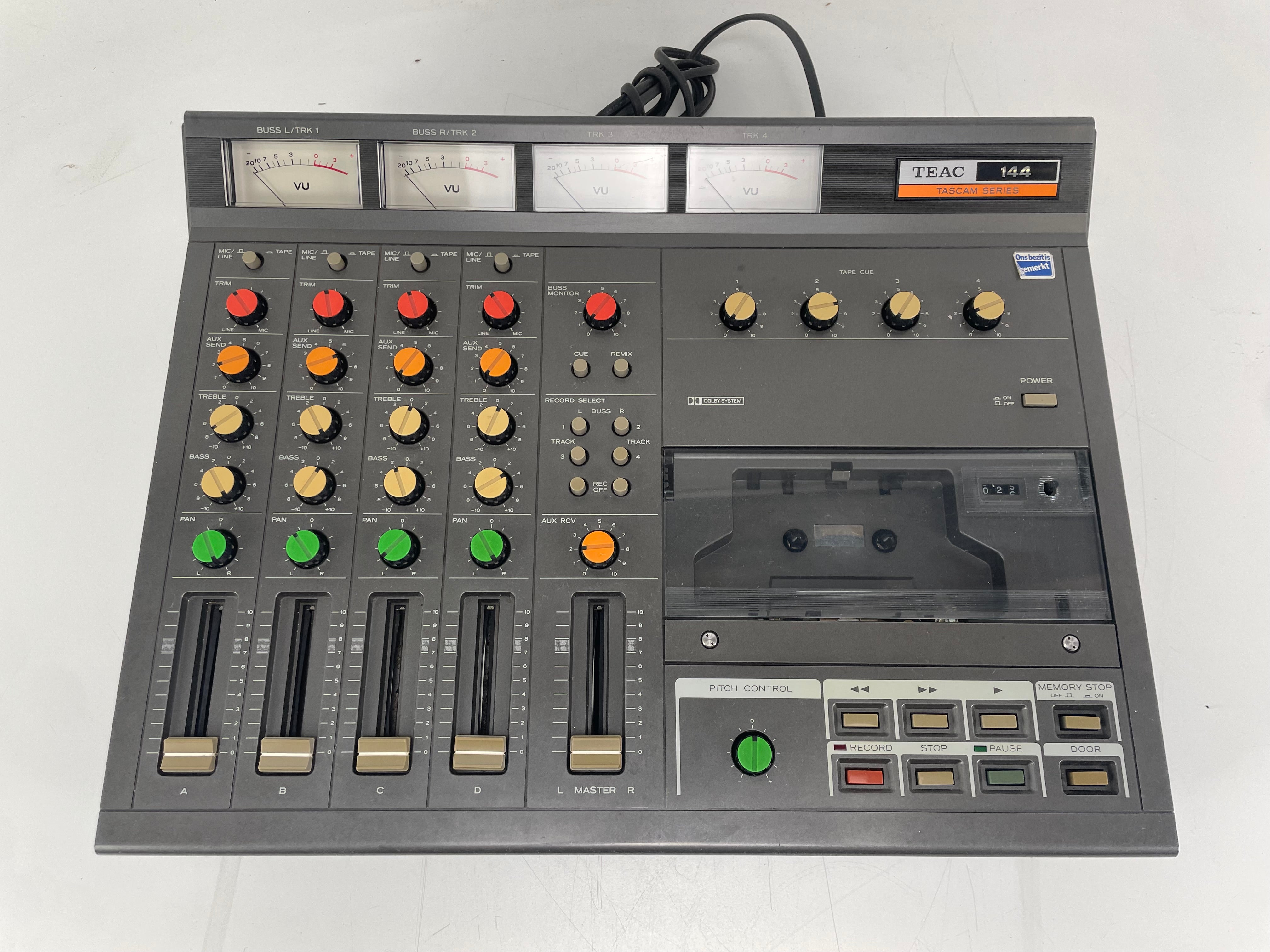

For sale: a TEAC 144 Portastudio multitrack cassette recorder, an early cassette-based recording workstation designed for multitrack home and project-studio recording.
This unit has received mechanical service and repair work. The tape transport initially had problems with winding and take-up, causing the machine to stop during operation. Several mechanical shafts were found to be seized and were freed up, lubricated, and brought back into operation.
After several hours of servicing and testing, the transport functions were working again and the machine was left on test.
''Please ask us for a shipping quote for the best shipping rates. Shown costs might be incorrect, or we can offer better services''

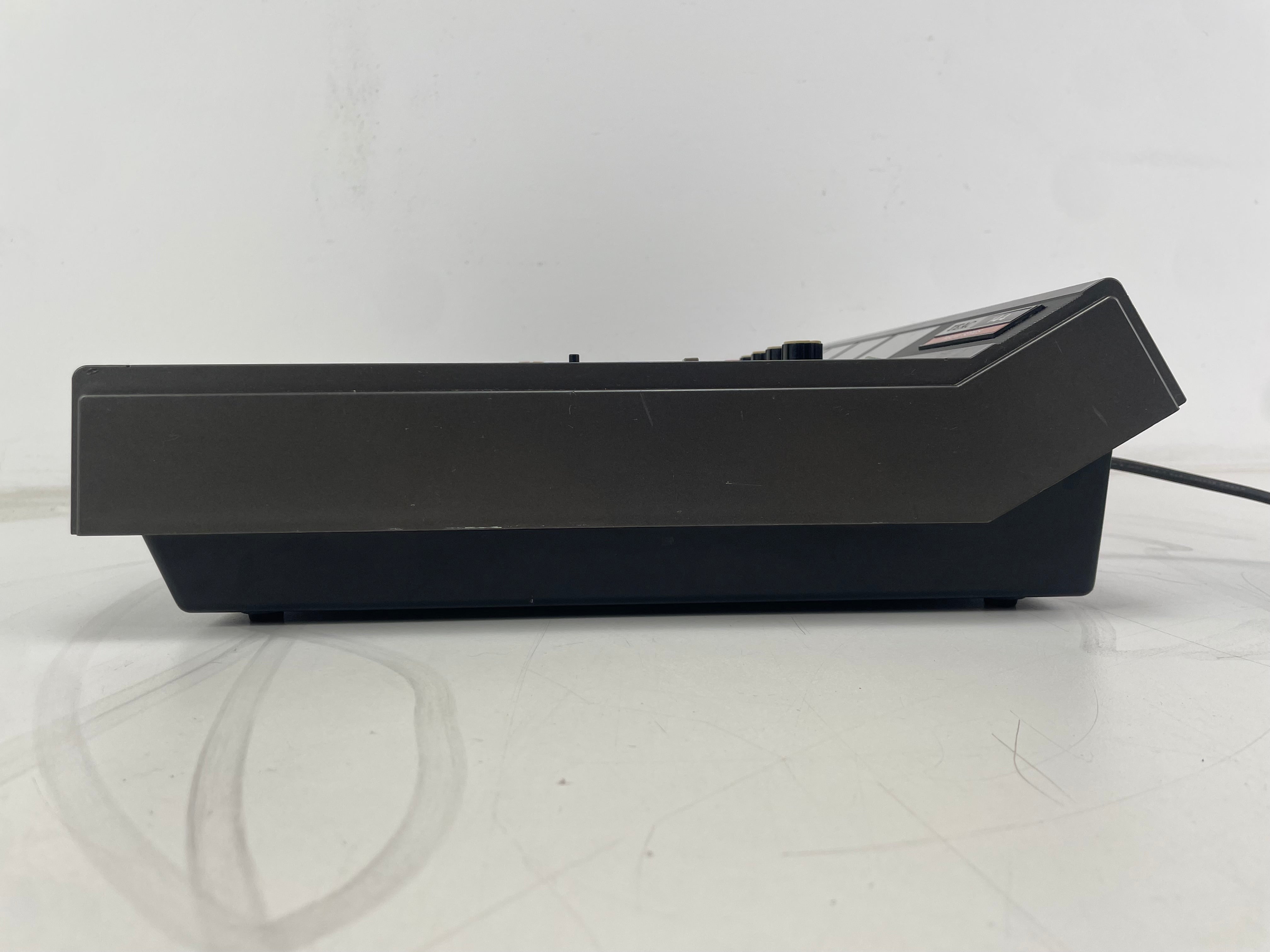

Cosmetic condition:
The recorder is in used vintage condition.
- General signs of age and previous use
- Some controls may still show minor age-related noise
- The lid supports had previously been broken
- A previous repair attempt on the lid supports had failed
- The supports have now been glued again and the repair is holding
- Evidence of previous internal repair work is present

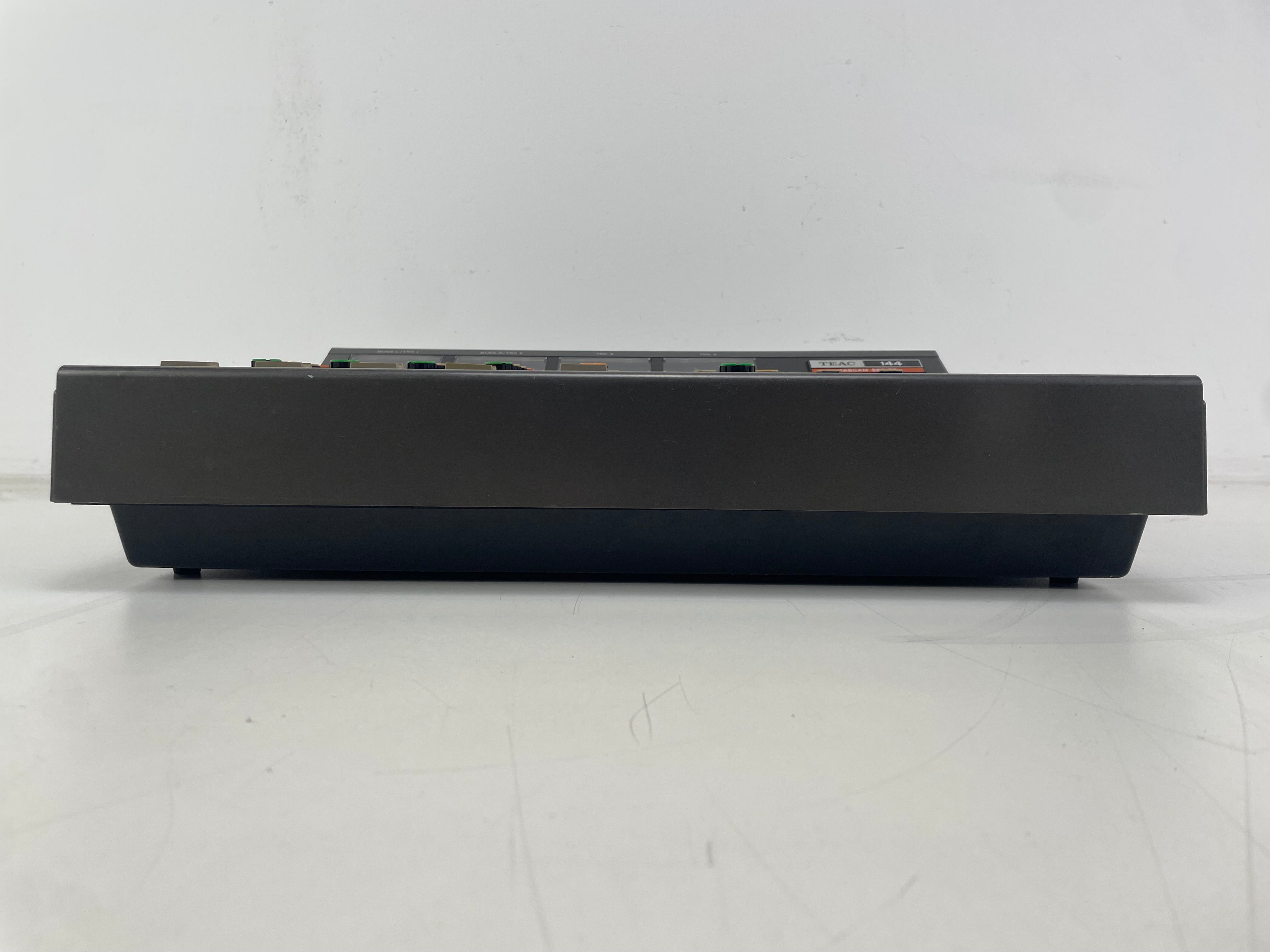

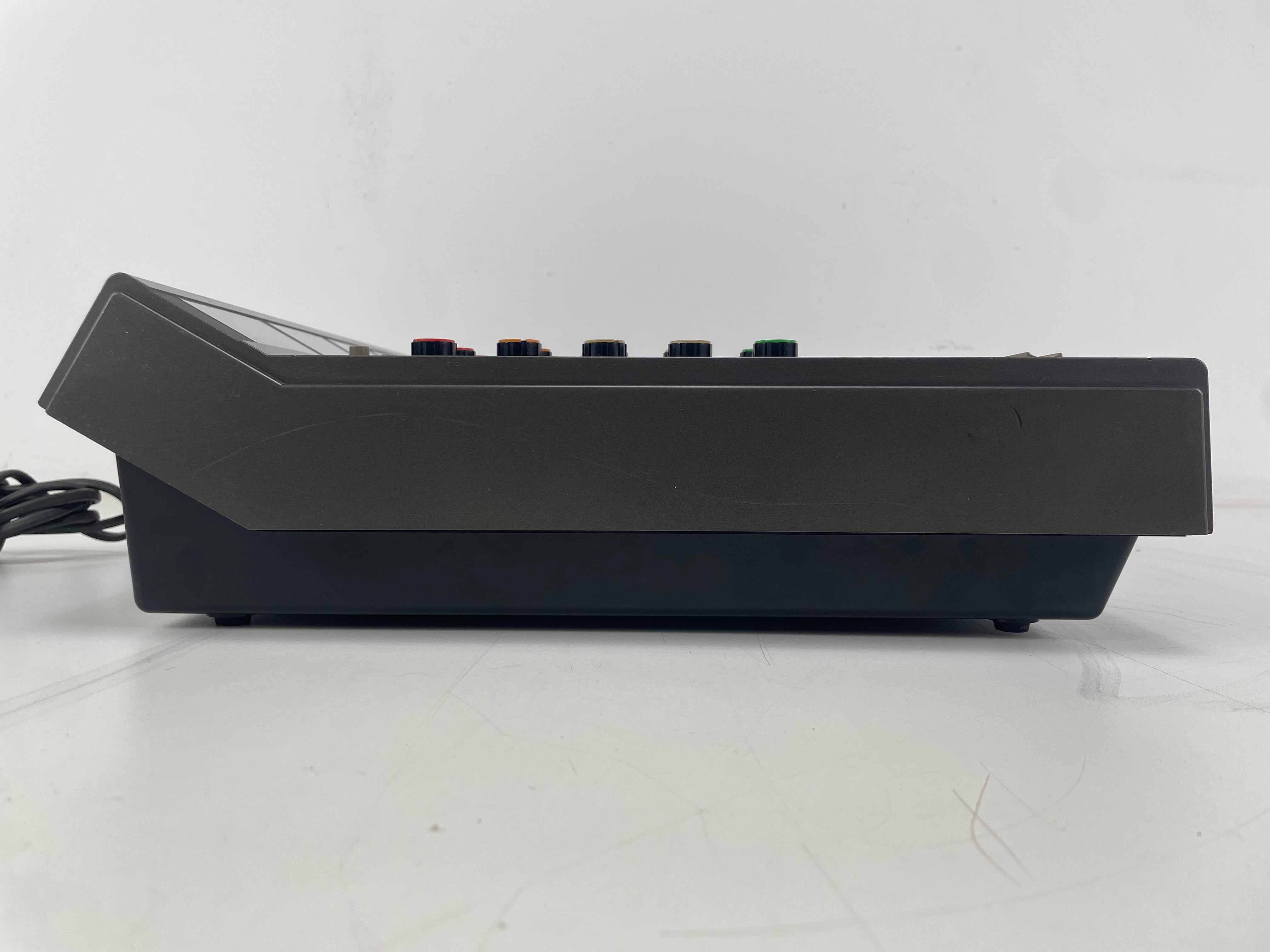

- Please review the photos carefully for the exact cosmetic condition
📼 Functional status
✔ Tape transport repaired
✔ Winding function restored
✔ Take-up mechanism restored
✔ Mechanical parts freed and lubricated
✔ Unit tested after repair
Service Performed:
- Repaired the tape winding mechanism
- Repaired the take-up friction mechanism, which had been causing the machine to stop
- Freed several seized mechanical shafts
- Lubricated the affected mechanical components
- Potentiometers cleaned in an attempt to reduce crackling/noise
- Repaired previously broken lid supports by re-gluing them
- Machine operated and tested for several hours after servicing
Specs:
- Type: Four-track cassette recorder and mixer
- Format: Compact cassette
- Recording System: 4-track, single-direction special format
- Mixer Channels: 4
- Recording Channels: 2, switchable between all four tracks
- Playback Channels: 4
- Noise Reduction: Full-time Dolby noise reduction
- Tape Speed: 9.5 cm/s (3¾ ips), ±1%
- Pitch Control: ±15%
- Recording Time: Approximately 15 minutes with a C-60 cassette
- Recommended Tape: High-bias Type II cassette, C-60 or C-90
- Fast-Wind Time: Approximately 70 seconds for a C-60 cassette

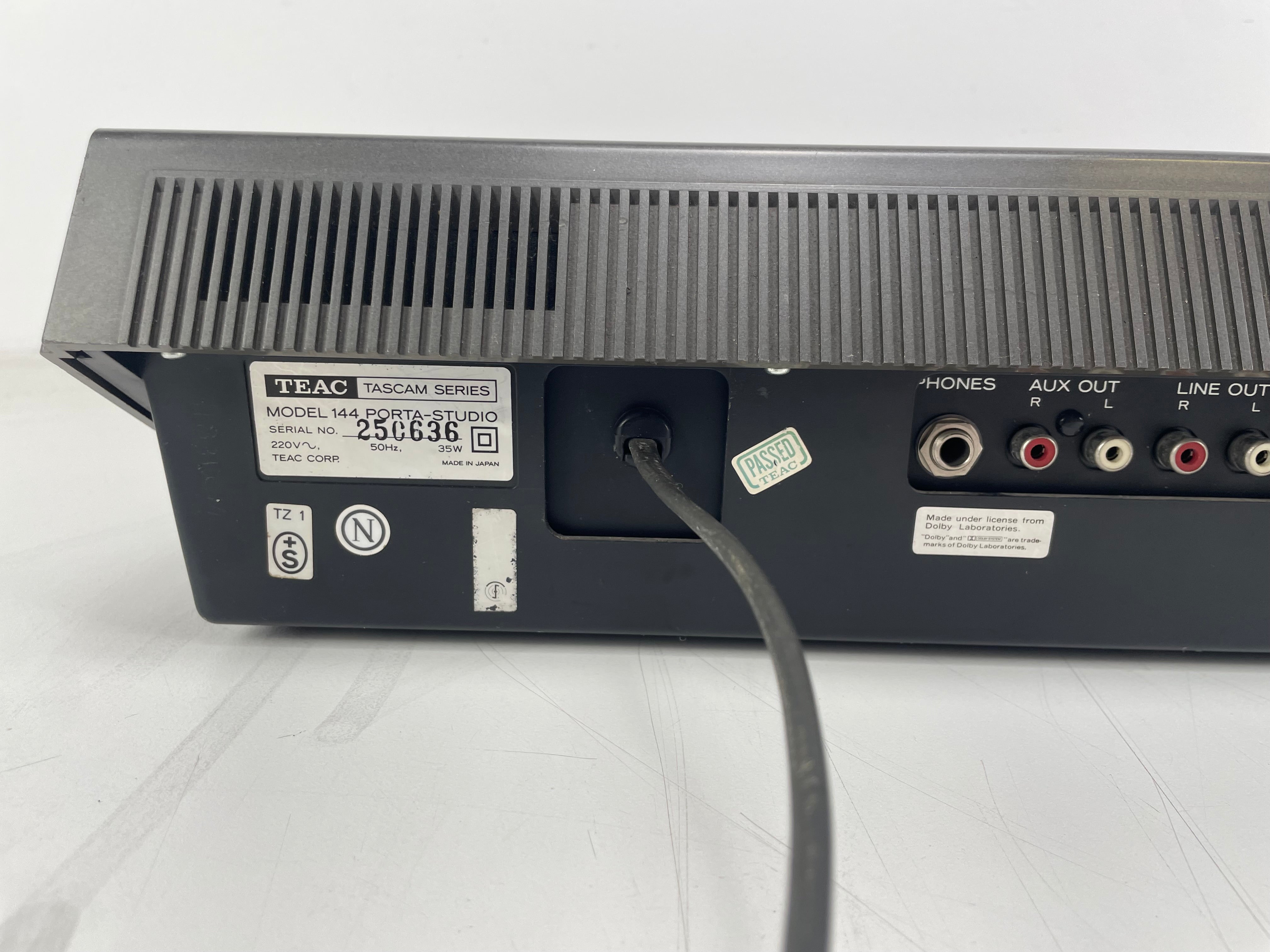

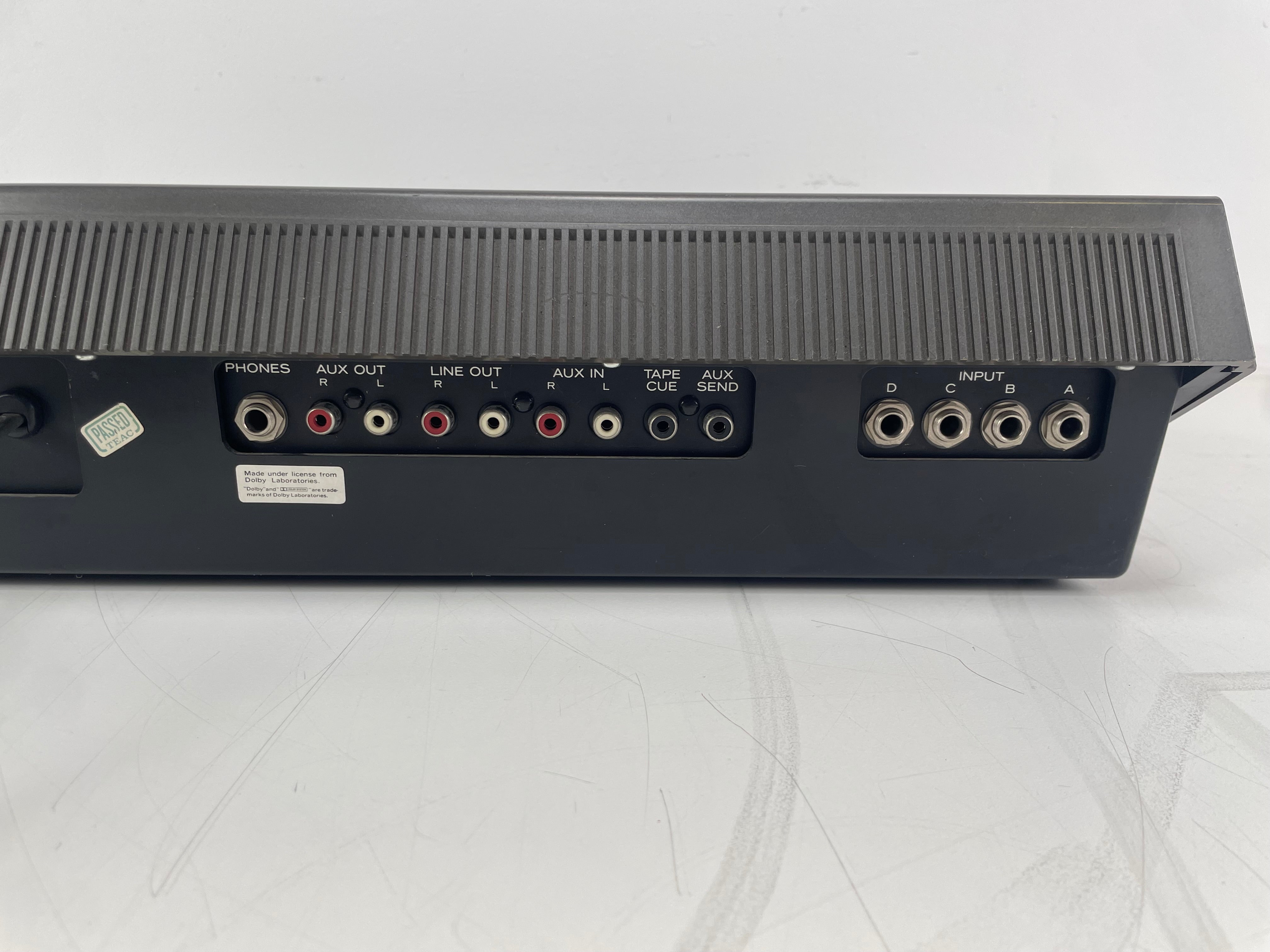

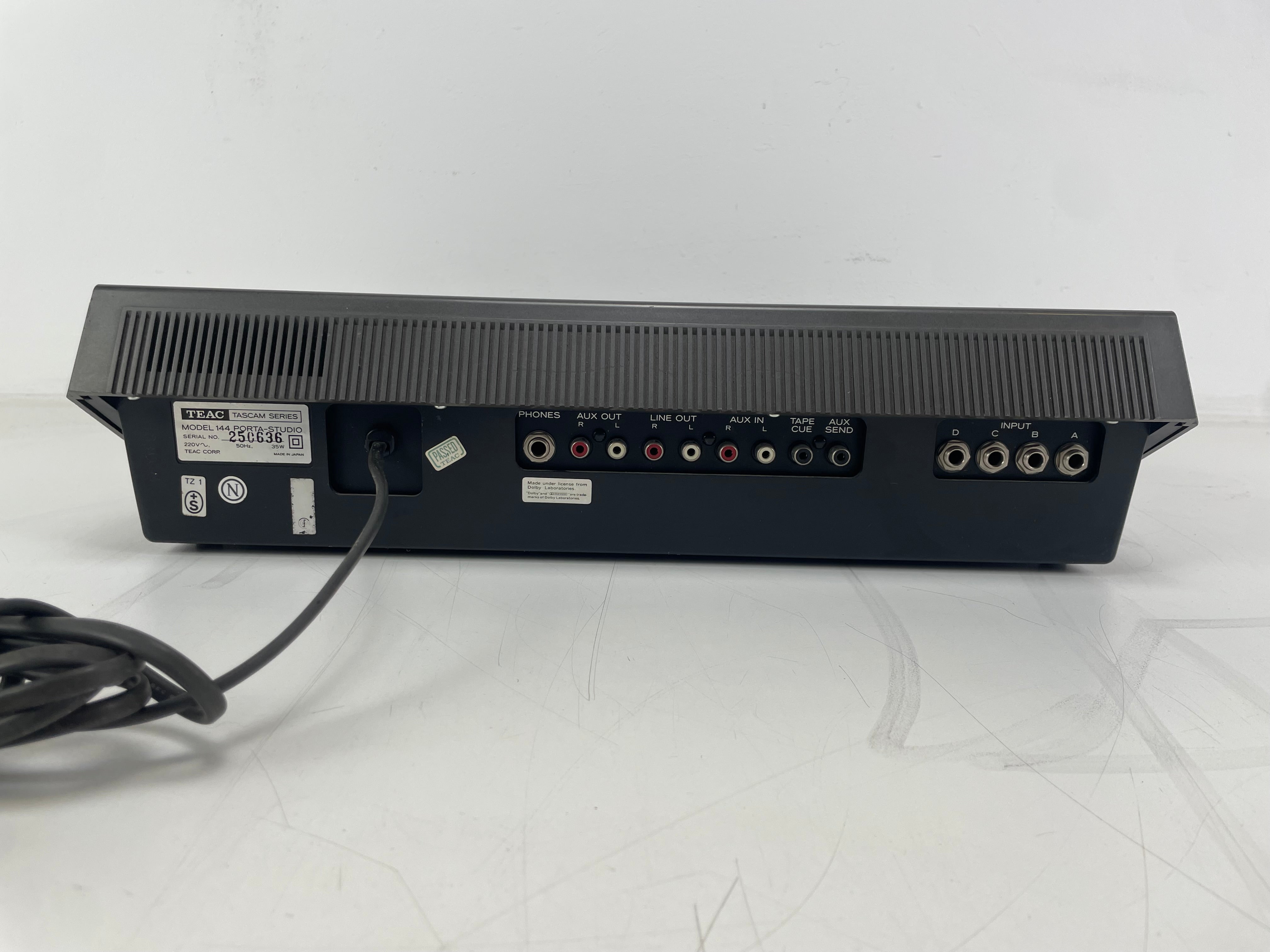

Inputs and Outputs
- Mic/Line Inputs: 4
- Input Impedance: 60 kΩ
- Recommended Source Impedance: 10 kΩ or lower
- Nominal Mic Input Level: -60 dBV (1 mV)
- Nominal Line Input Level: -10 dBV (0.3 V)
- Minimum Input Level: -66 dBV (0.5 mV)
- Maximum Input Level: +8 dBV (2.5 V)
- Aux Inputs: 2
- Aux Input Impedance: 65 kΩ
- Nominal Aux Input Level: -10 dBV (0.3 V)
- Line Outputs: 2
- Aux Outputs: 2
- Output Impedance: 200 Ω
- Recommended Load Impedance: 10 kΩ or higher
- Nominal Output Level: -10 dBV (0.3 V)
- Maximum Output Level: +15 dBV (5.6 V)
- Headphone Output: Stereo
- Headphone Load Impedance: 8 Ω or higher
- Maximum Headphone Output: 100 mW into 8 Ω
Equalizer
- Treble: ±10 dB at 10 kHz
- Bass: ±10 dB at 100 Hz

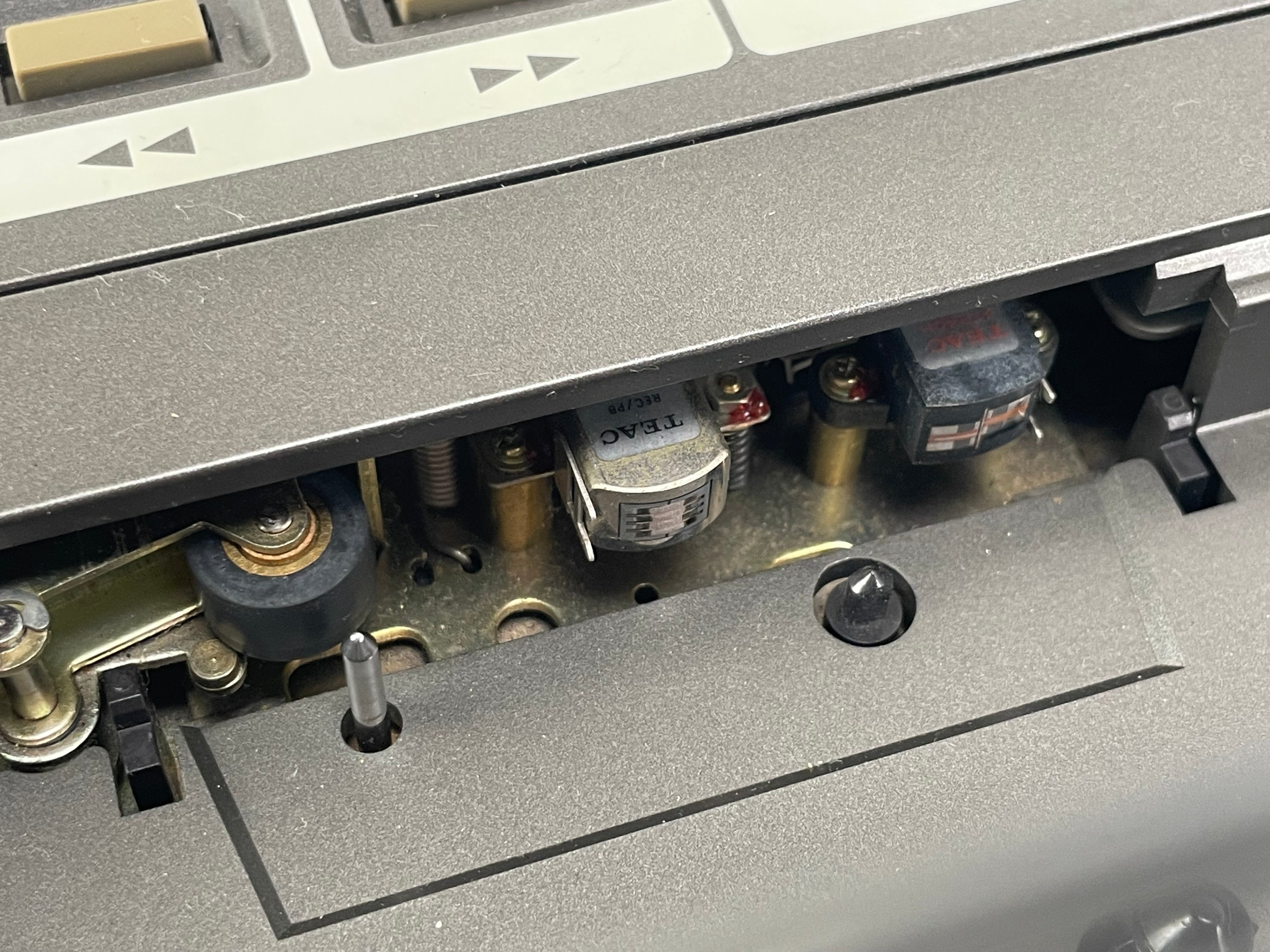

Tape Transport
- Erase Head: Four-channel ferrite/permalloy
- Record/Playback Head: Four-channel permalloy
- Capstan Motor: FG servo-controlled DC motor
- Reel Motor: DC motor
- Wow and Flutter: 0.06% peak weighted / 0.04% RMS weighted
Audio Performance
- Mixer Frequency Response: 20 Hz to 20 kHz
- Recorder Frequency Response: 20 Hz to 18 kHz
- Recorder Response at 0 VU: 40 Hz to 12.5 kHz, ±3 dB
- Mixer THD: 0.3% at 1 kHz, nominal level
- Recorder THD: 2% at 315 Hz, 0 VU
- Mixer Signal-to-Noise Ratio: 68 dB weighted
- Recorder Signal-to-Noise Ratio: 63 dB weighted
- Mixer Crosstalk: 65 dB at 1 kHz
- Recorder Crosstalk: 50 dB at 1 kHz
- Erasure: 65 dB at 1 kHz
Dimensions (LxWxH): 460 × 120 × 370 mm
Weight: 11 Kg
Volts: 220v (If it’s 200V or higher, you’ll need an adapter in the USA)
