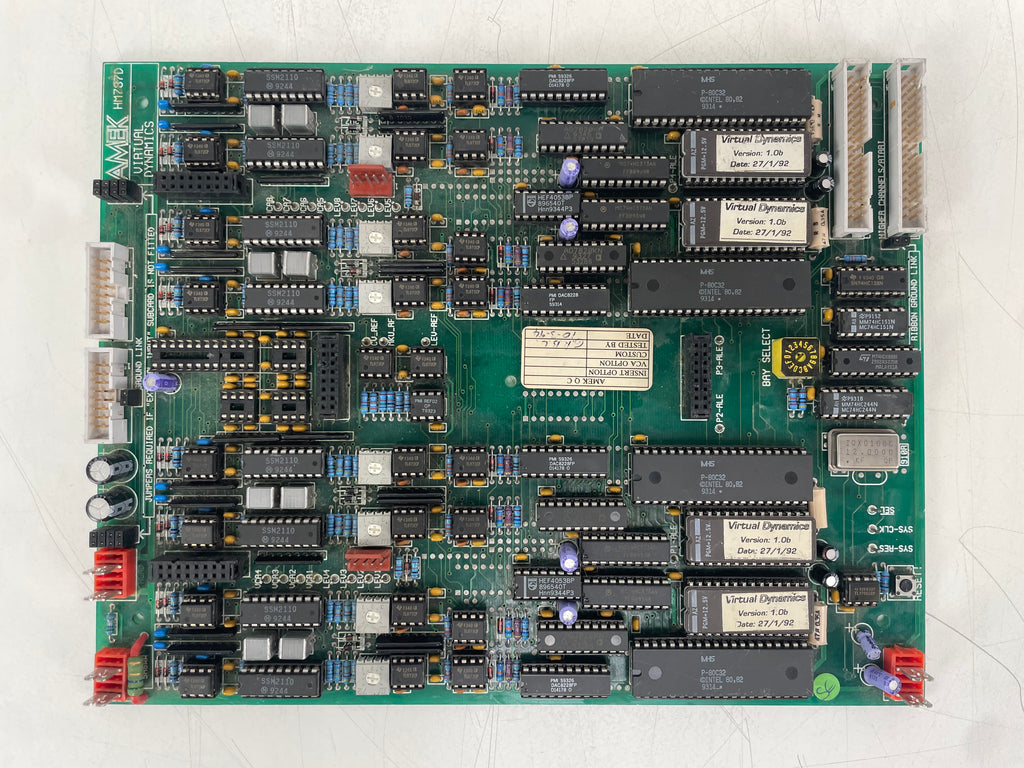

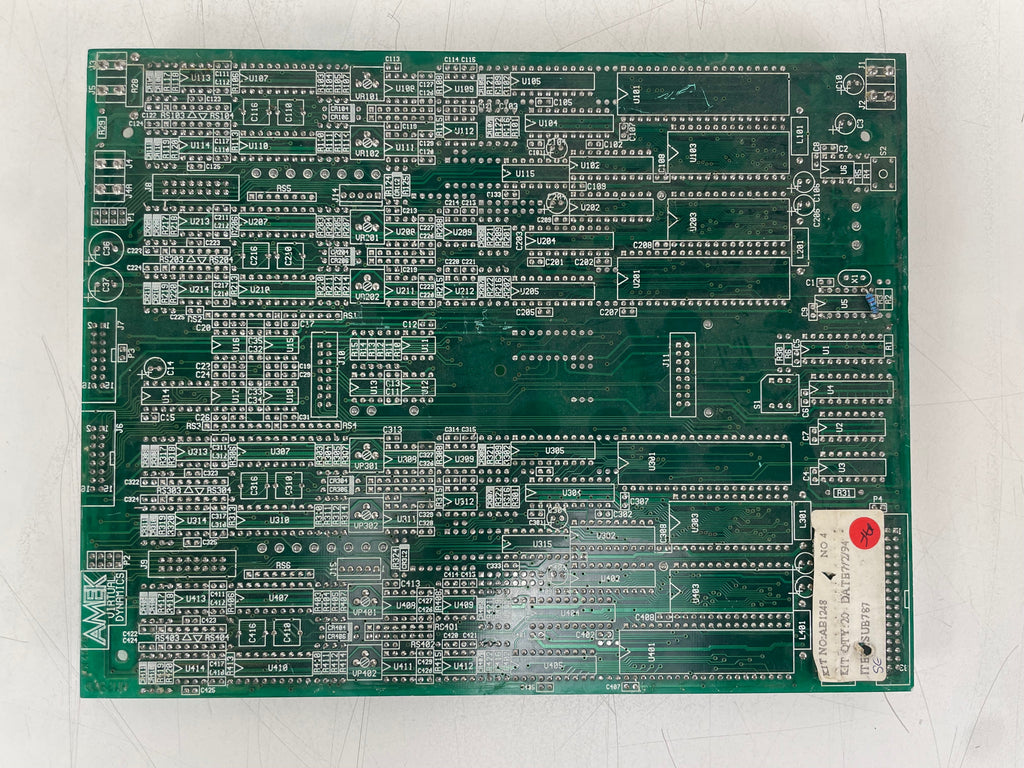

For sale: an original AMEK Virtual Dynamics PCB, marked HM7897B and SUB787.

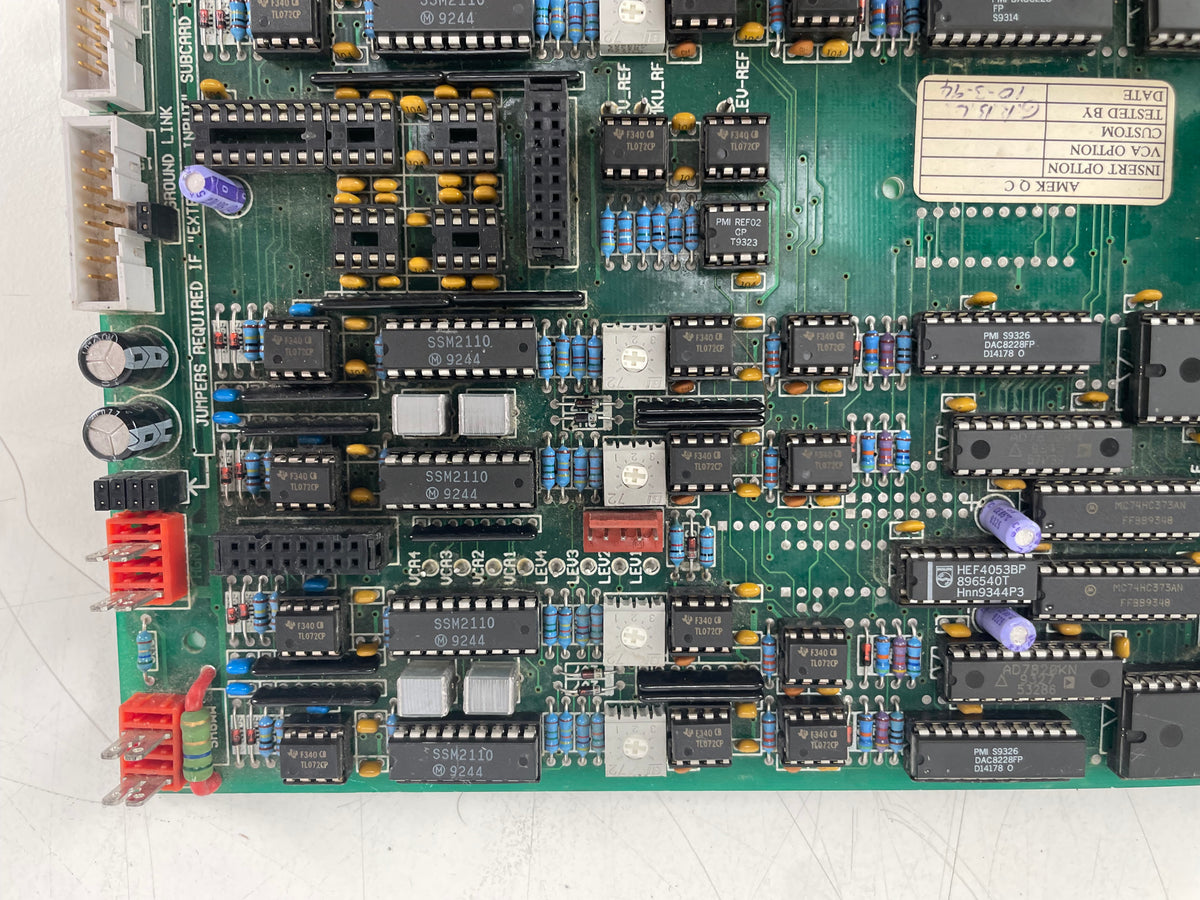

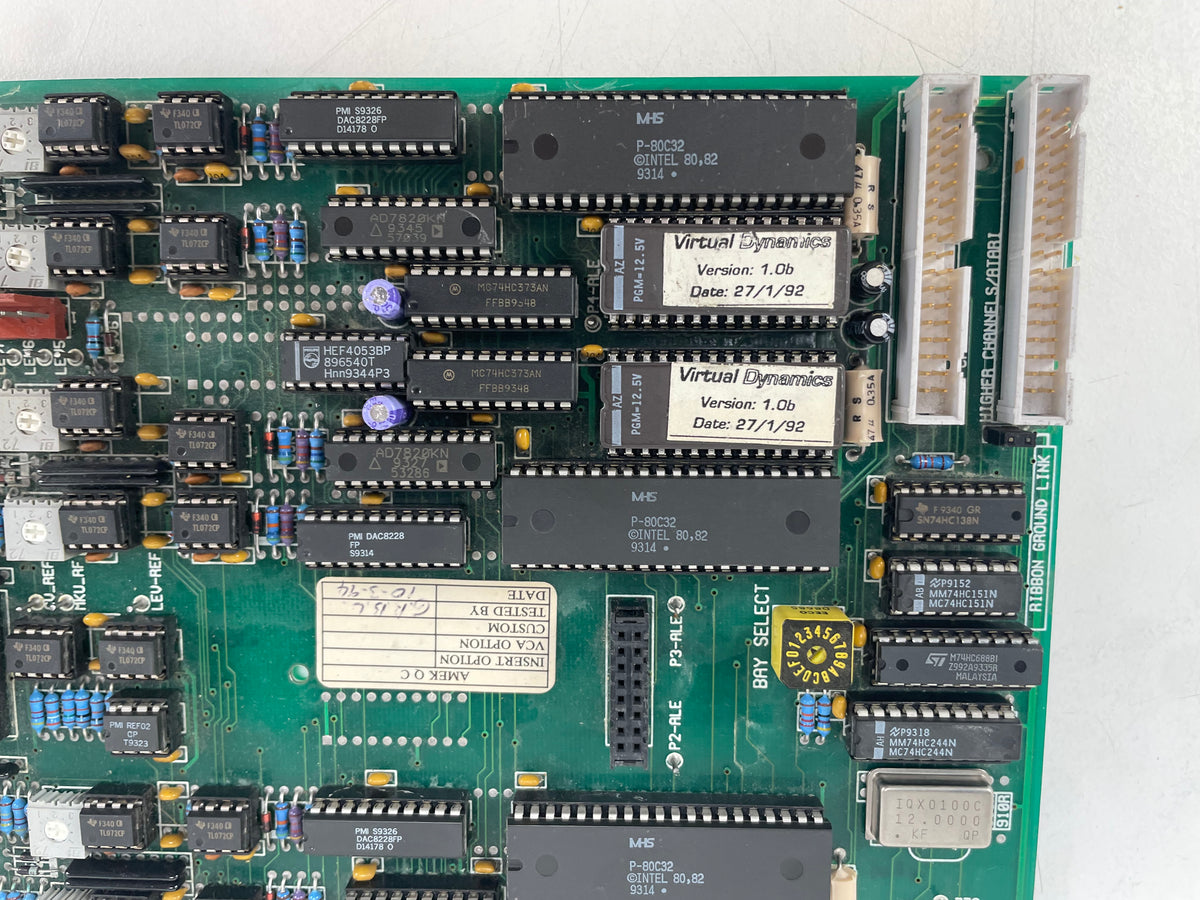

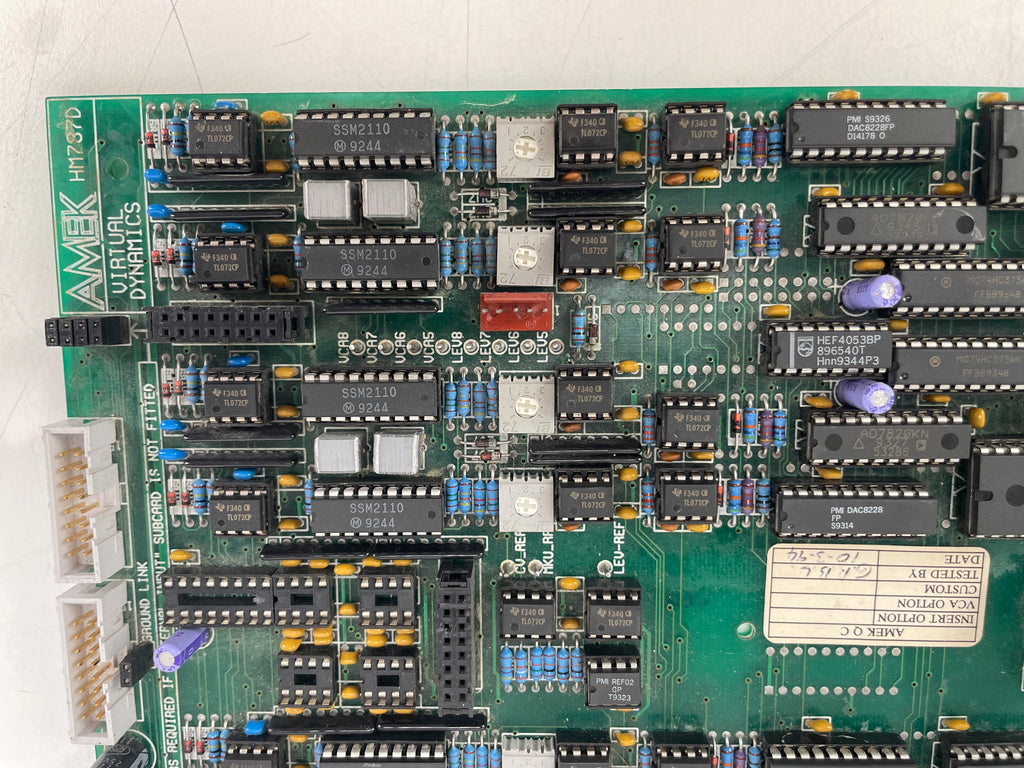

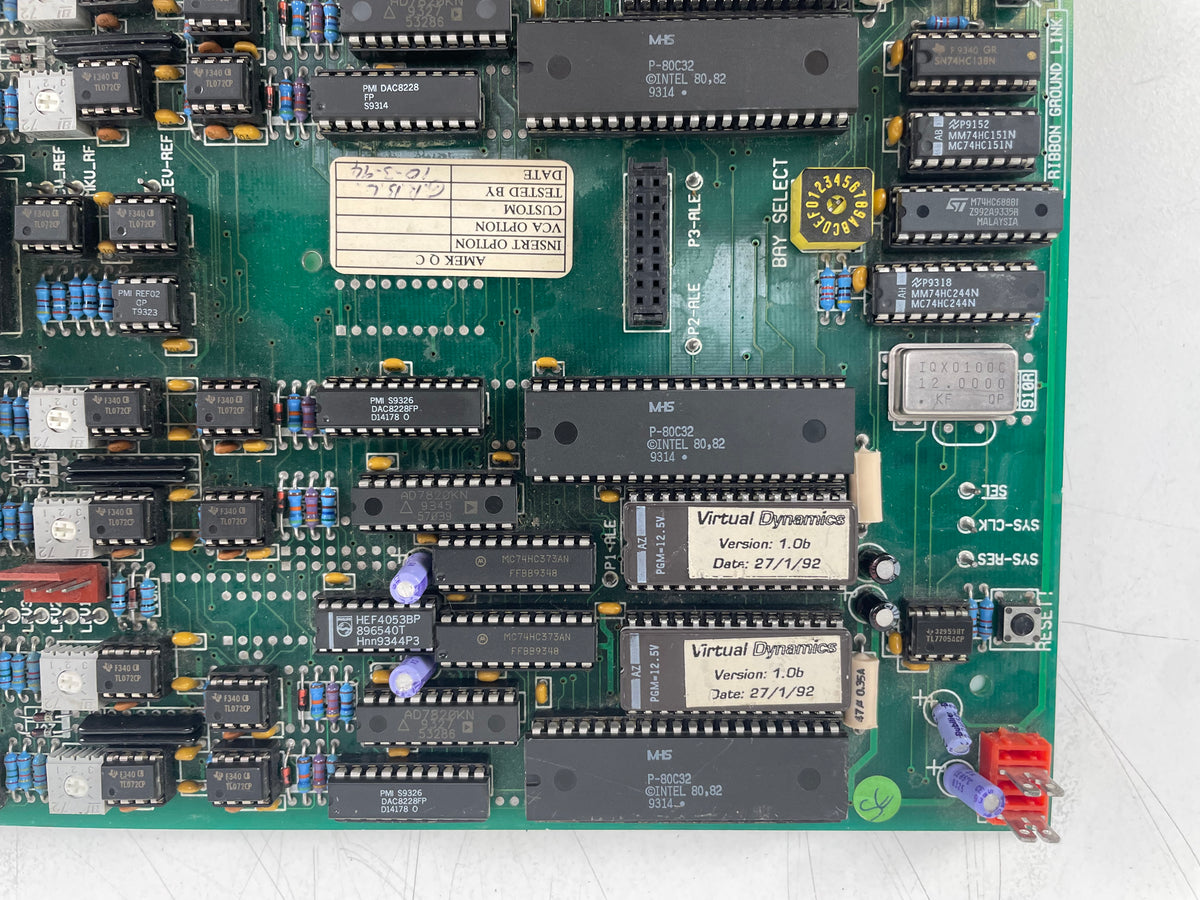

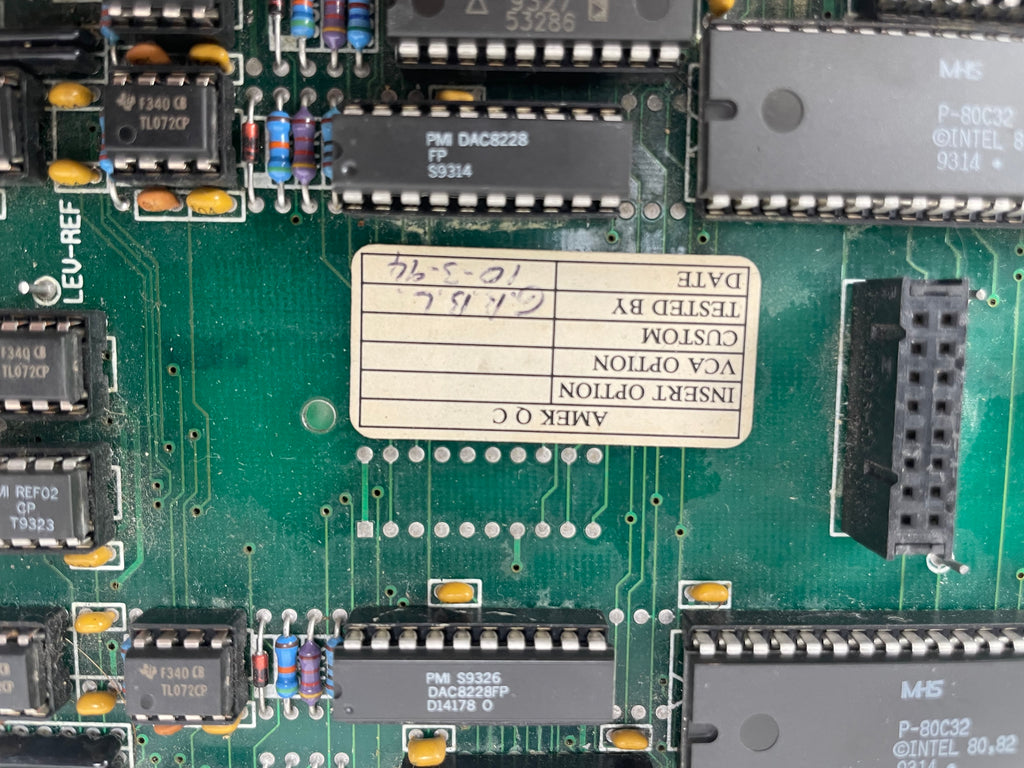

This is a specialist console electronics board from AMEK’s Virtual Dynamics system. The board is densely populated with the original analogue and digital circuitry, including multiple SSM2110 devices, TL072 op-amps, DACs, Intel P80C32 processors and EPROMs labelled Virtual Dynamics Version 1.0b, dated 27/1/92.
AMEK’s Virtual Dynamics system was used in its higher-end mixing consoles to provide digitally controlled analogue dynamics such as compression, limiting, gating and expansion.
Used in AMEK Mozart, AMEK Hendrix, AMEK Rembrandt en de AMEK Recall.
''Please ask us for a shipping quote for the best shipping rates. Shown costs might be incorrect, or we can offer better services''
Cosmetic condition:
Untested.
- No functional testing has been carried out
- Sold As Is
- PCB appears largely complete from visual inspection
- Various sockets/connectors are unpopulated by design or configuration
- Normal age-related marks, dust and oxidation may be present
- Please study all photos carefully for the exact configuration and condition
Because the board is untested, no guarantee is made regarding functionality or compatibility.
Dimensions (LxWxH): 19 x 14 x 2 cm
Weight: 1Kg
