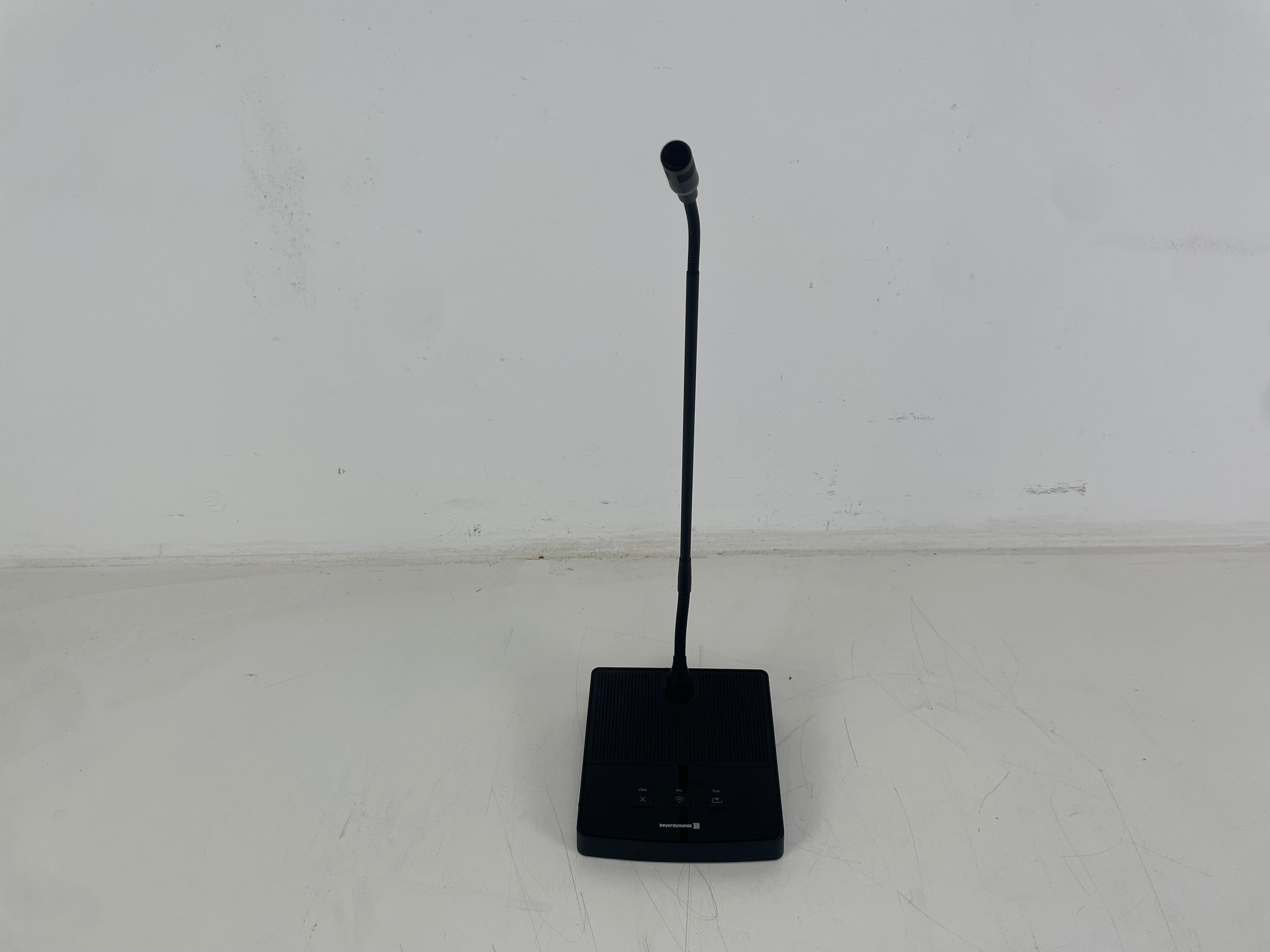

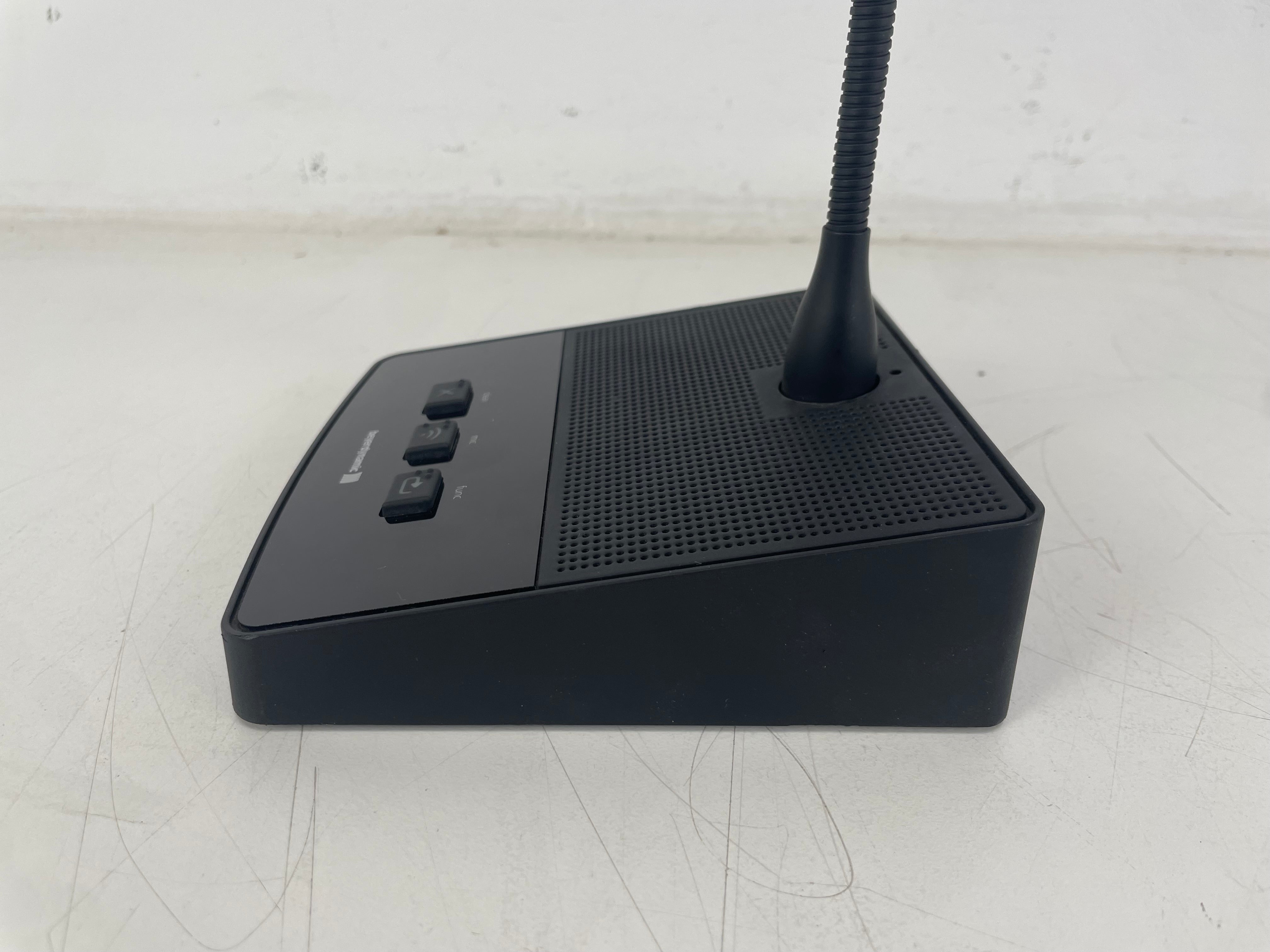

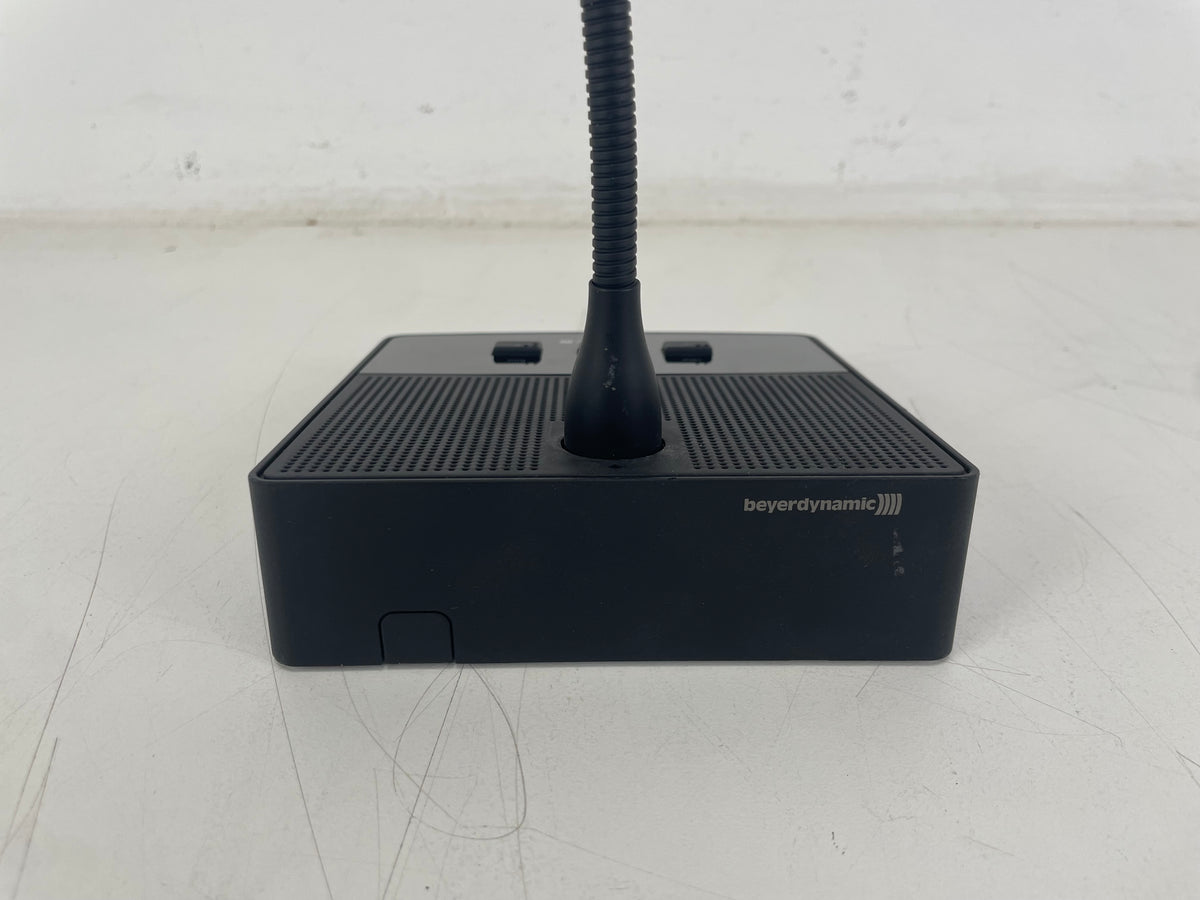

For sale: a Beyerdynamic Orbis MU 23 gooseneck conference microphone, designed for speech, meeting, and conference-system applications.
The microphone has not been tested, so its complete functional condition is unknown. It is therefore offered untested and as is.
''Please ask us for a shipping quote for the best shipping rates. Shown costs might be incorrect, or we can offer better services''
Cosmetic condition:
The microphone is in used condition with minor cosmetic damage.

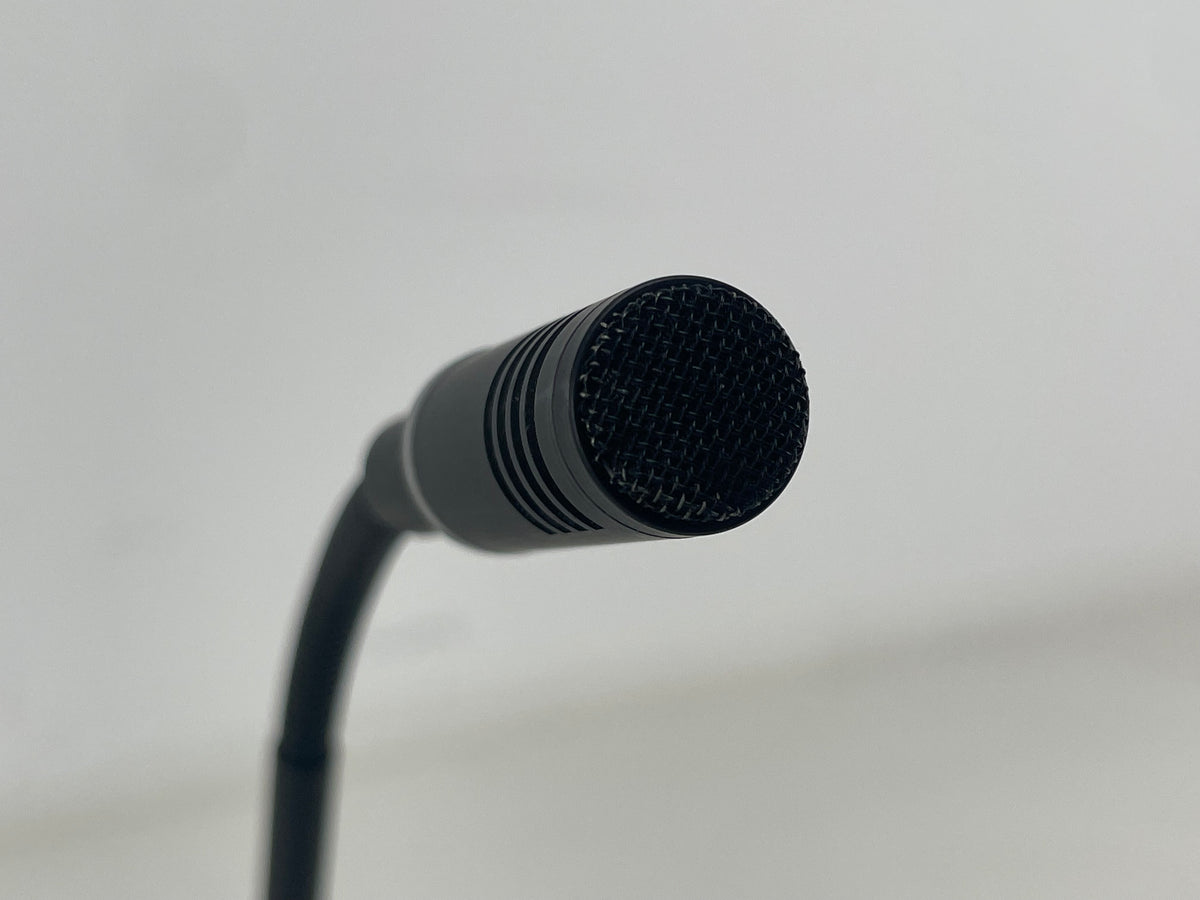

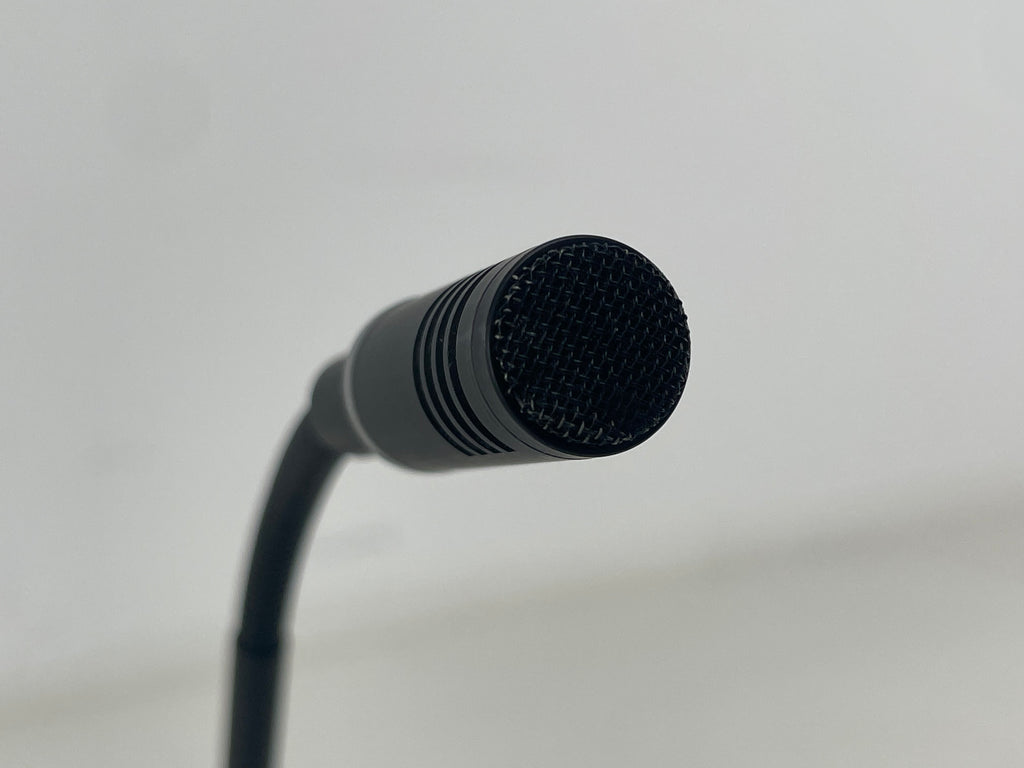

- Microphone grille is slightly dented
- General signs of previous use

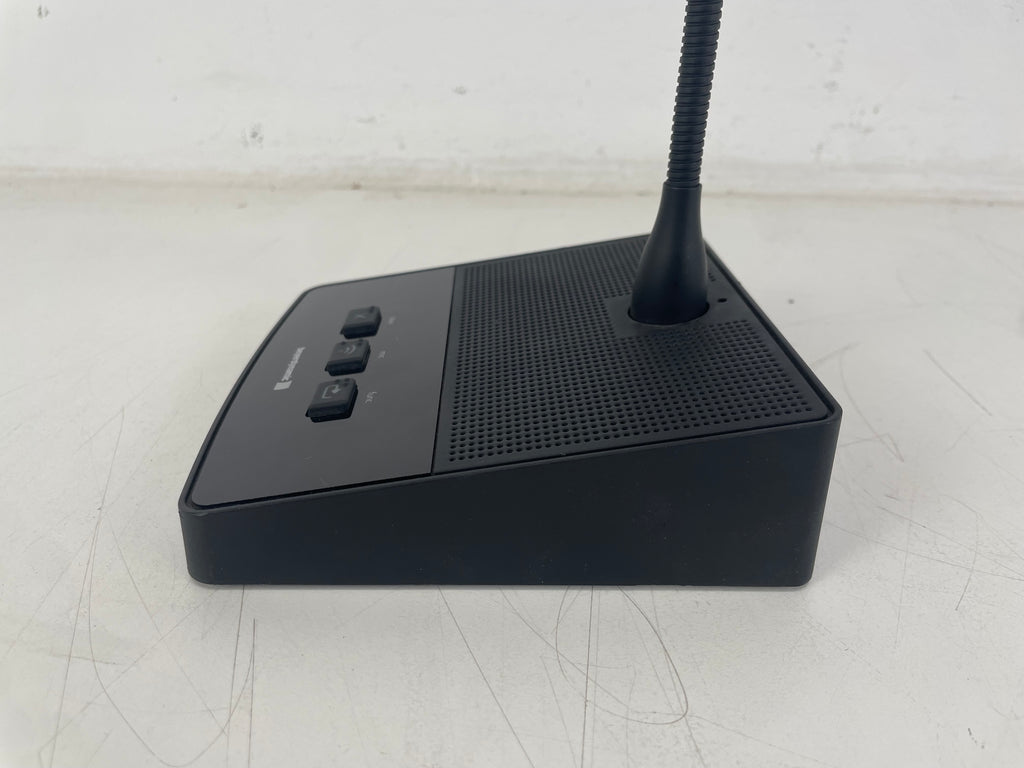

- Gooseneck and housing remain presentable
- No major structural damage reported
- Please review the photos for the exact cosmetic condition
🎤 Functional status
✘ Untested
✘ Audio output not verified
⚠ Sold as is
Specs:
- Type: Digital chairman conference microphone unit
- Order Number: 725.714

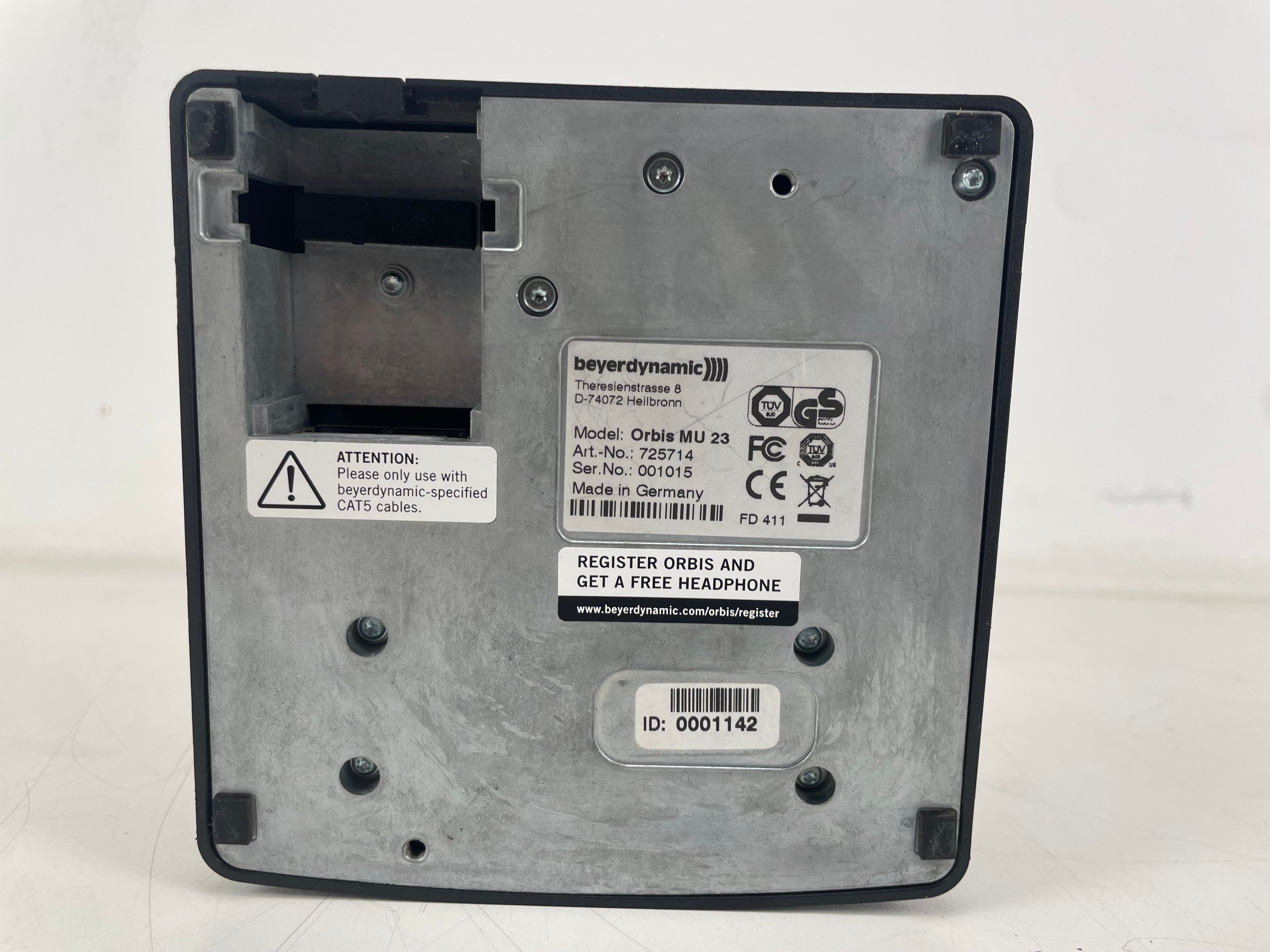

- Housing: Coated plastic with metal bottom plate
- Microphone Connection: Locking 5-pin male XLR
- Compatible Microphones: Beyerdynamic Classis GM 115 Q and GM 31x Q series
- Microphone Powering: 2.2 V through 2.2 kΩ

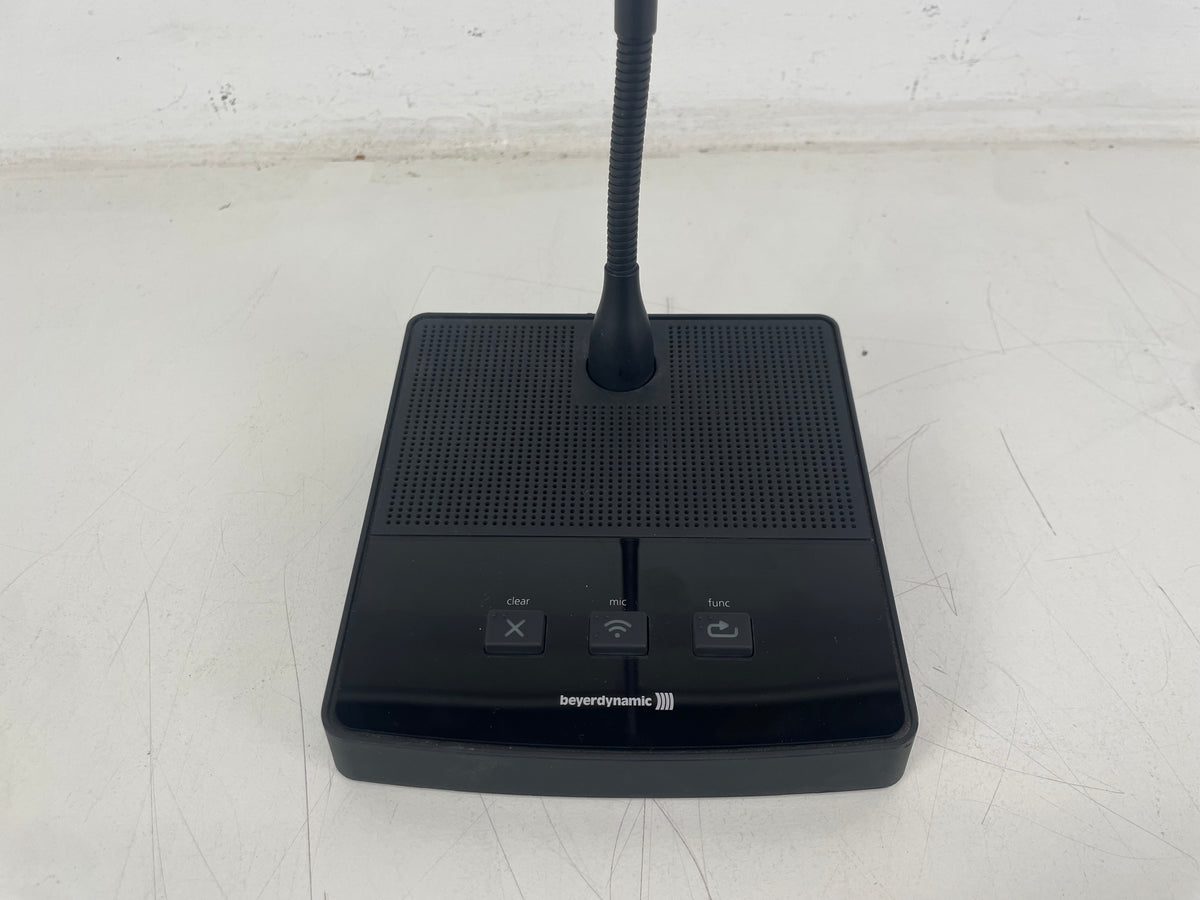

- Controls: Microphone, clear and configurable function buttons
- Button Illumination: White, green and red
- Integrated Loudspeaker: Equalised for speech reproduction
- Available Audio Channels: Two per system
- Signal-to-Noise Ratio: 80 dB(V), typical, unweighted

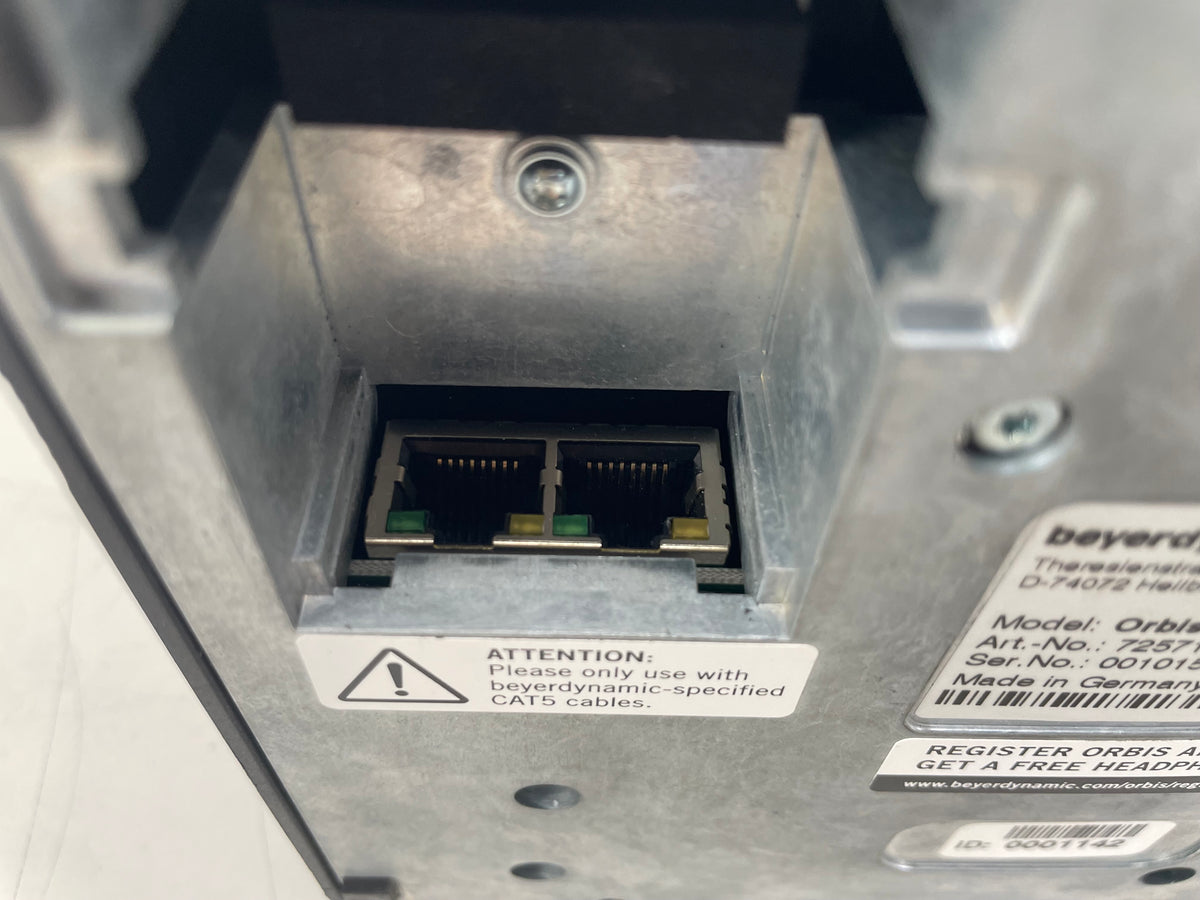

- System Connections: 2 × RJ45 sockets (not Ethernet)
- Cable Type: CAT5 S/UTP, minimum AWG 26
- Maximum Cable Length: 80 m between units when using AWG 24

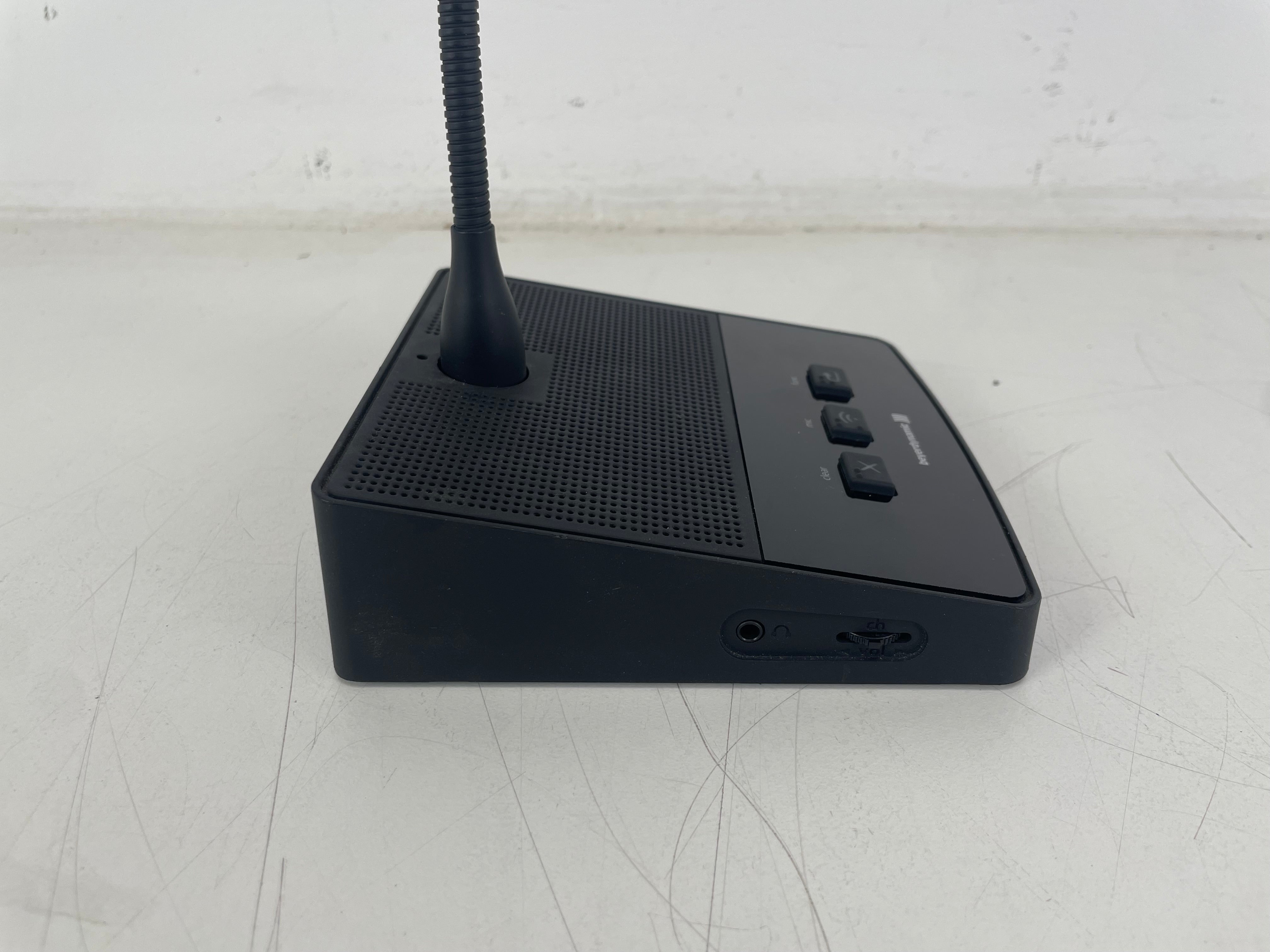

- Headphone Output: 3.5 mm stereo jack
- Minimum Headphone Impedance: 16 Ω
- Headphone Frequency Response: 20 Hz–15 kHz
- Headphone THD: 0.01% at 8 mW / 1 kHz / 16 Ω
- Power Supply: 48 V DC bus power, supplied by the Orbis control unit
- Maximum Power Consumption: 1 W
- Operating Temperature: +10°C to +40°C
- Storage Temperature: −20°C to +55°C
Dimensions (LxWxH): 140 × 135 × 42 mm
Weight: 3 Kg
Volts: ?v (If it’s 200V or higher, you’ll need an adapter in the USA)
